Looking for a dependable and high-quality master cylinder for your motorsport or custom application? Check out the FLUX Master Cylinders range! The ultimate solution for braking performance
Crafted with durability in mind, FLUX master cylinders feature a black E-coating and high-pressure die-cast aluminum design, along with superior quality EPDM rubber seals.
You can trust in the safety and performance, as they're tested to SAE J1153_201202 standards. They're compatible with standard DOT 3, DOT 4, and DOT 5.1 Glycol ether based brake fluids, plus, they can be easily rebuilt with readily available rebuild kits!
- Engineered for performance
- Lifetime warranty against manufacturing defects
| BORE SIZE | 0.75 (3/4 in) |
| STROKE |
1.25 |
| ARTEA (in²) | 0.44 |
|
VOLUME (cu in) |
0.55 |
| TYPE | Single outlet |
| OUTLETS | 1 |
|
MATERIAL |
Aluminium |
| FINISH | E-coating Black |
|
RES TYPE |
Internal |
| INLET | n/a |
|
OUTLET |
3/8-24 |
| ROD THREAD | 5/16-24 |
|
BOLT SPACING |
2-14" |
FLUX HYDRAULIC MASTERS

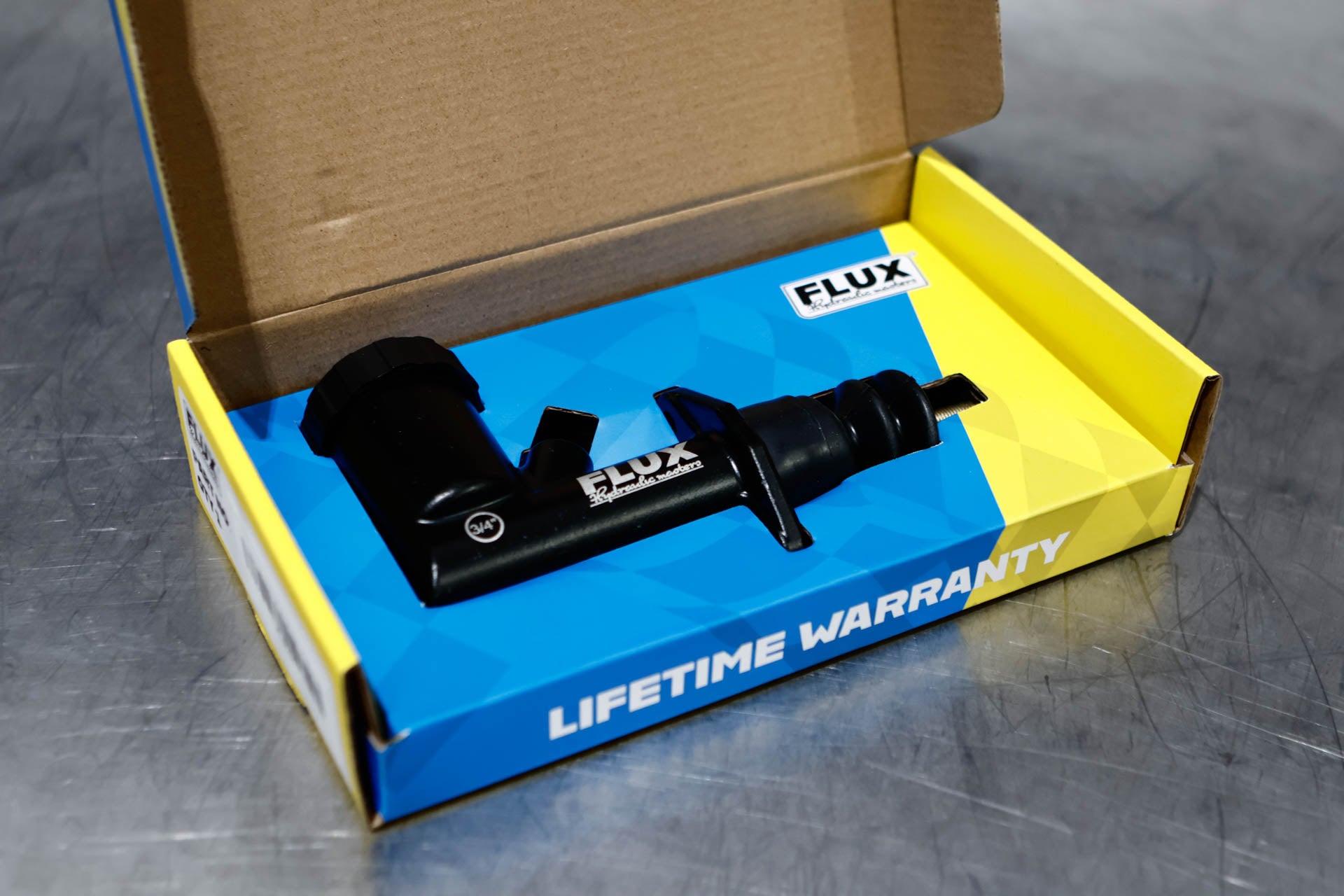

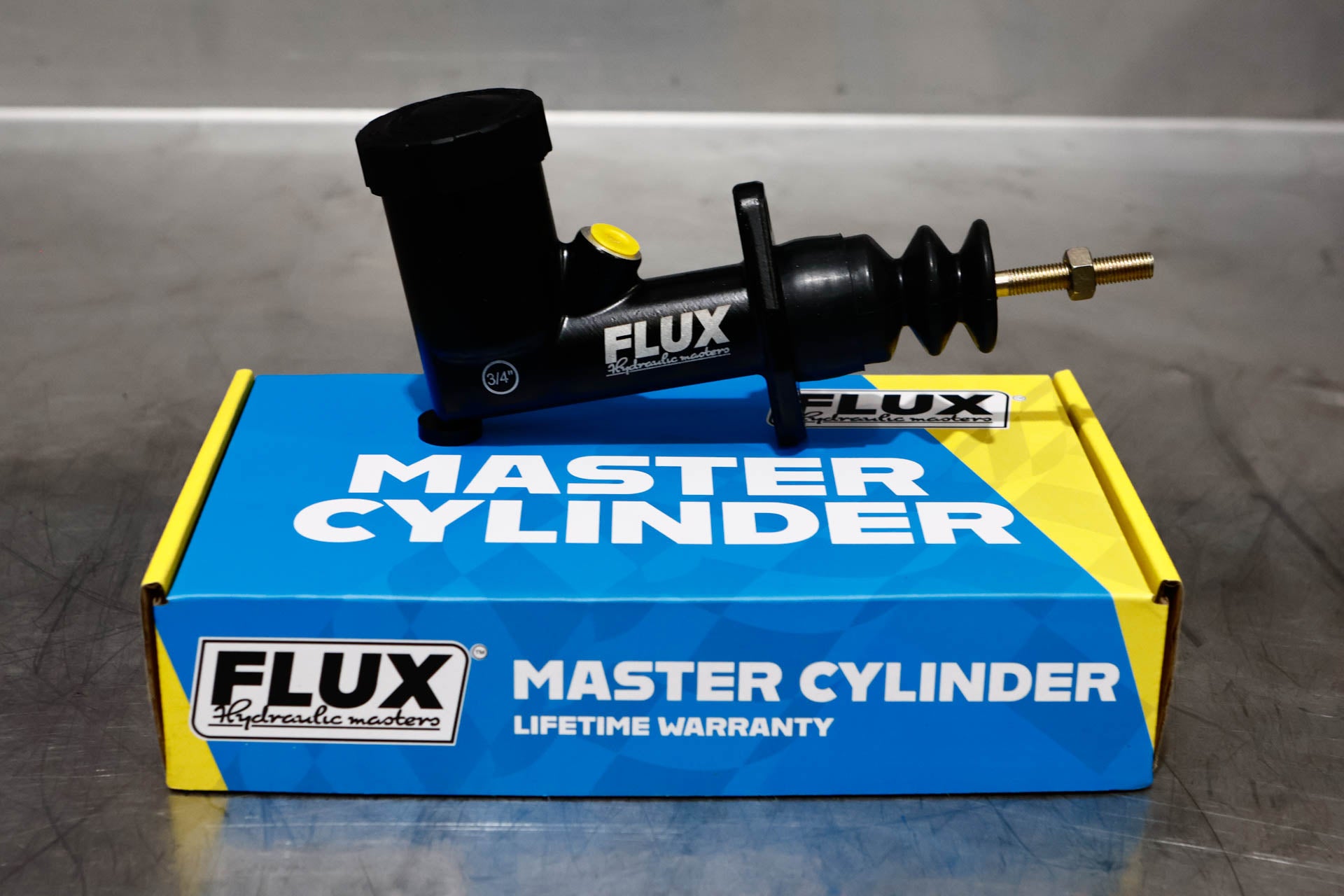

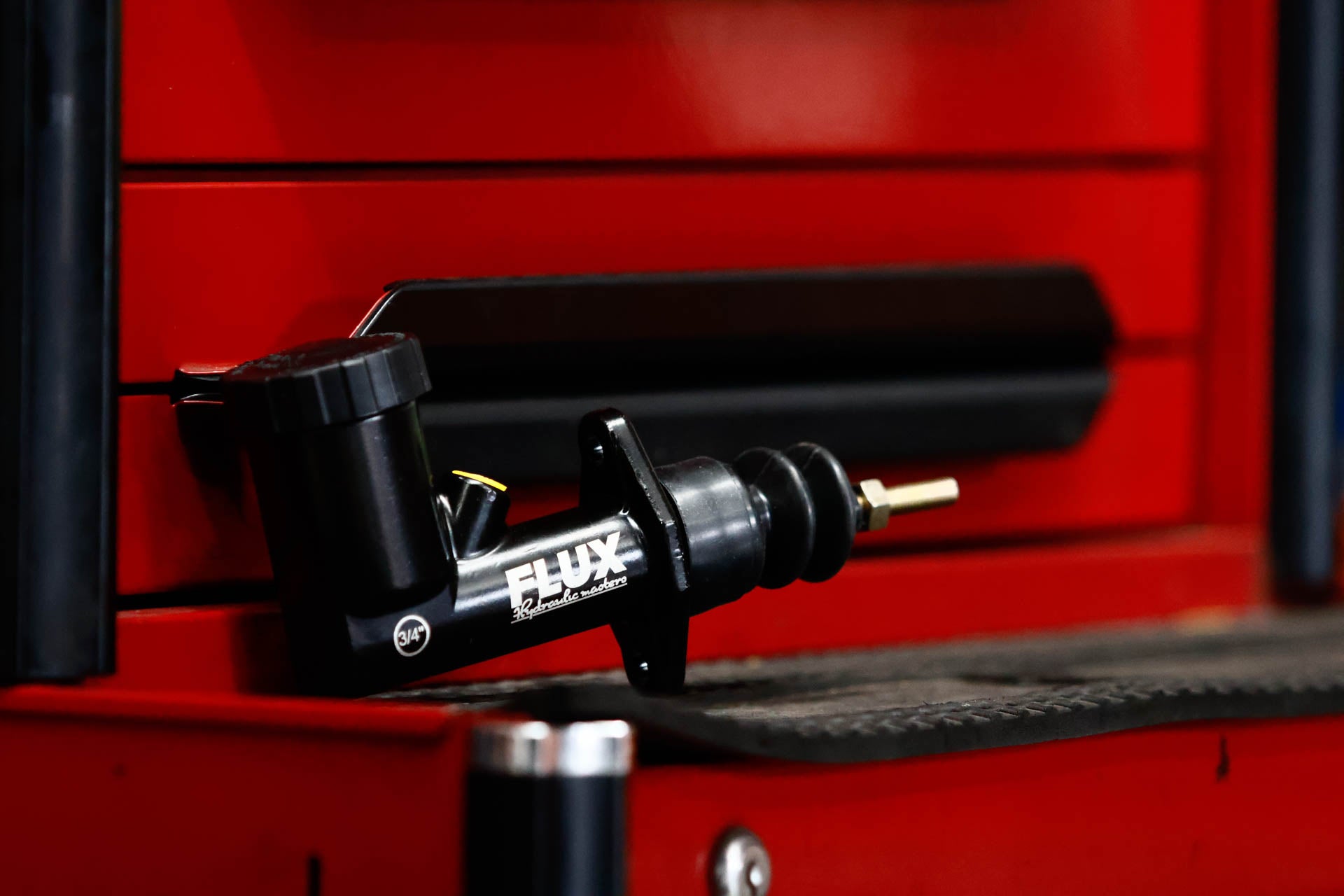

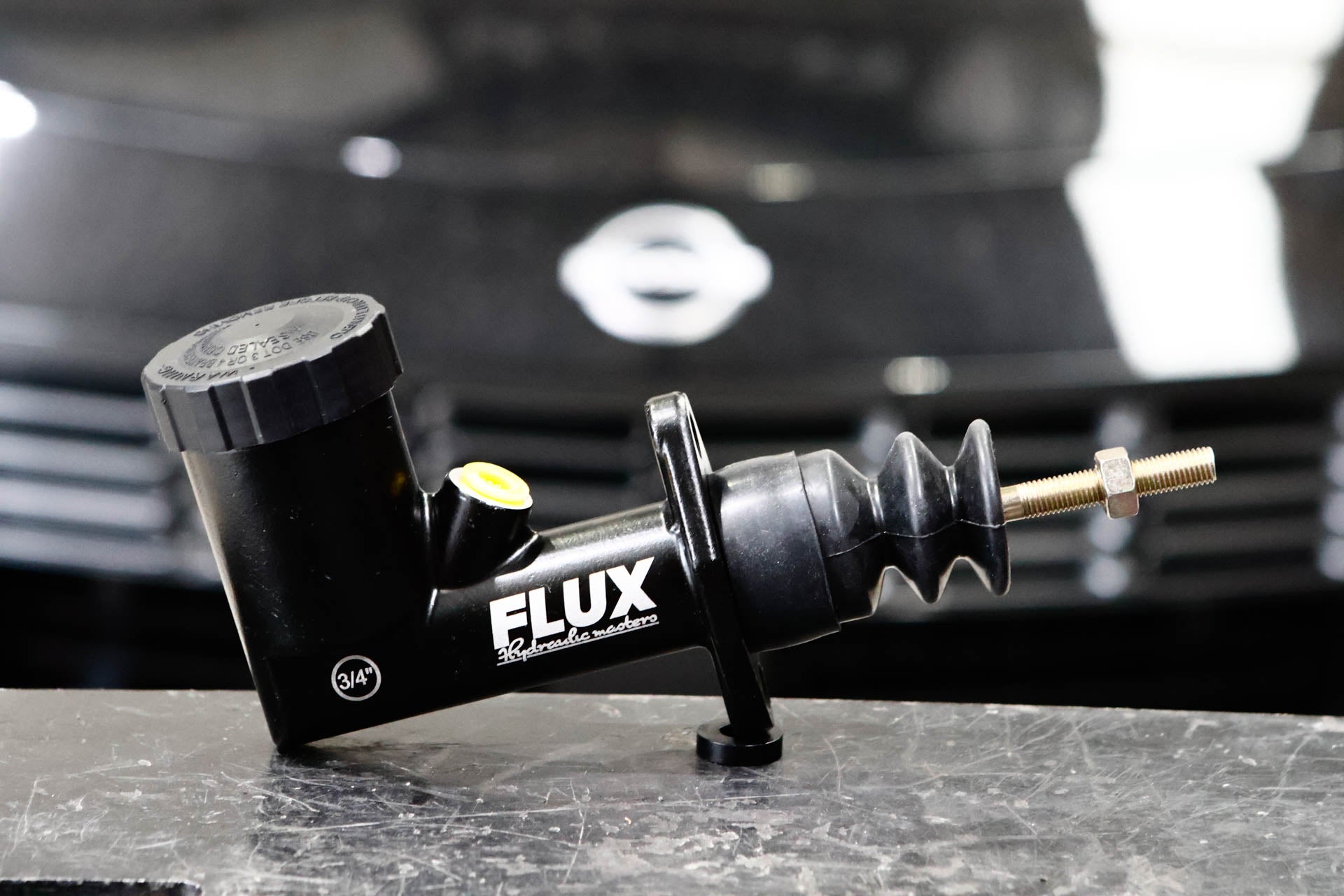

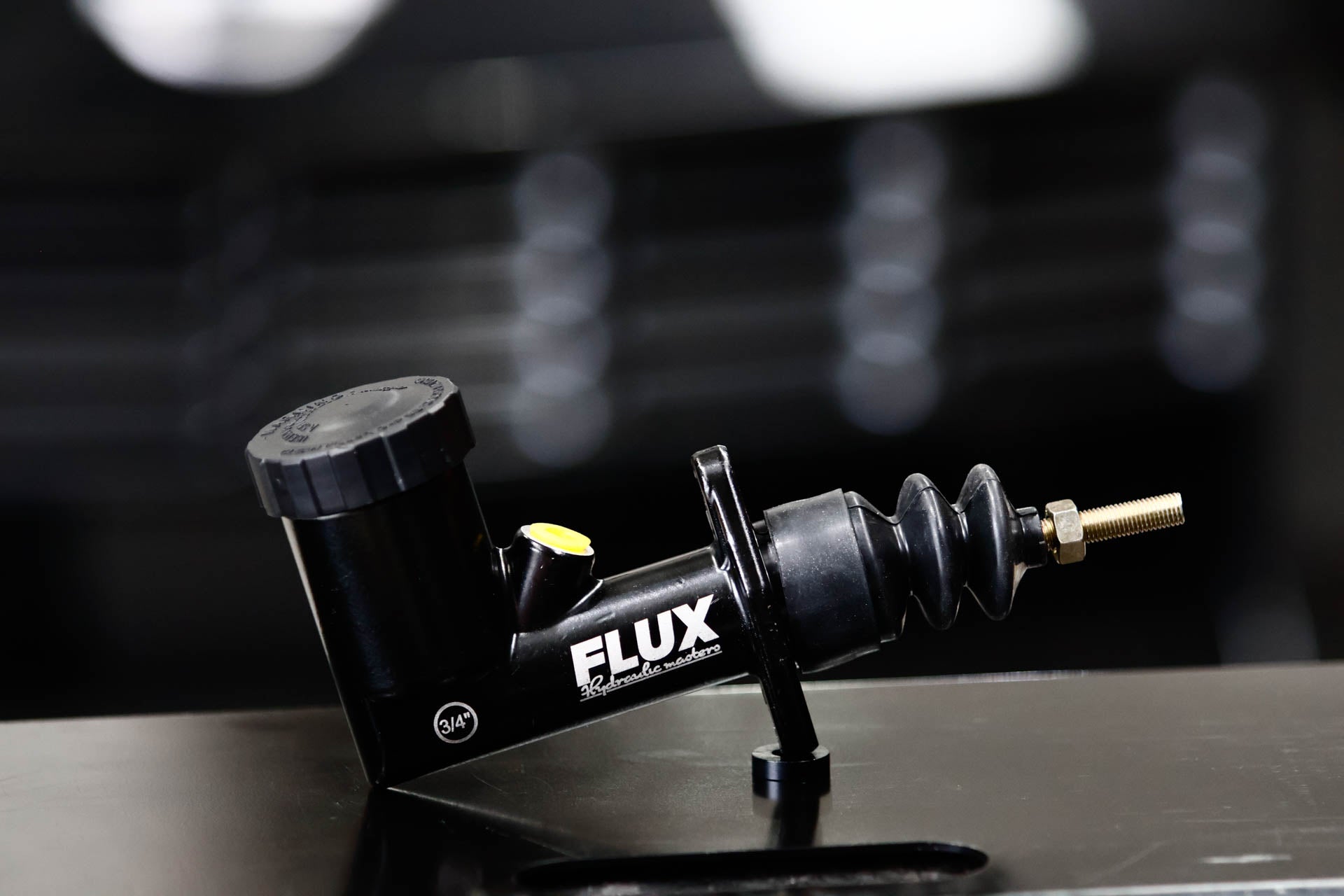

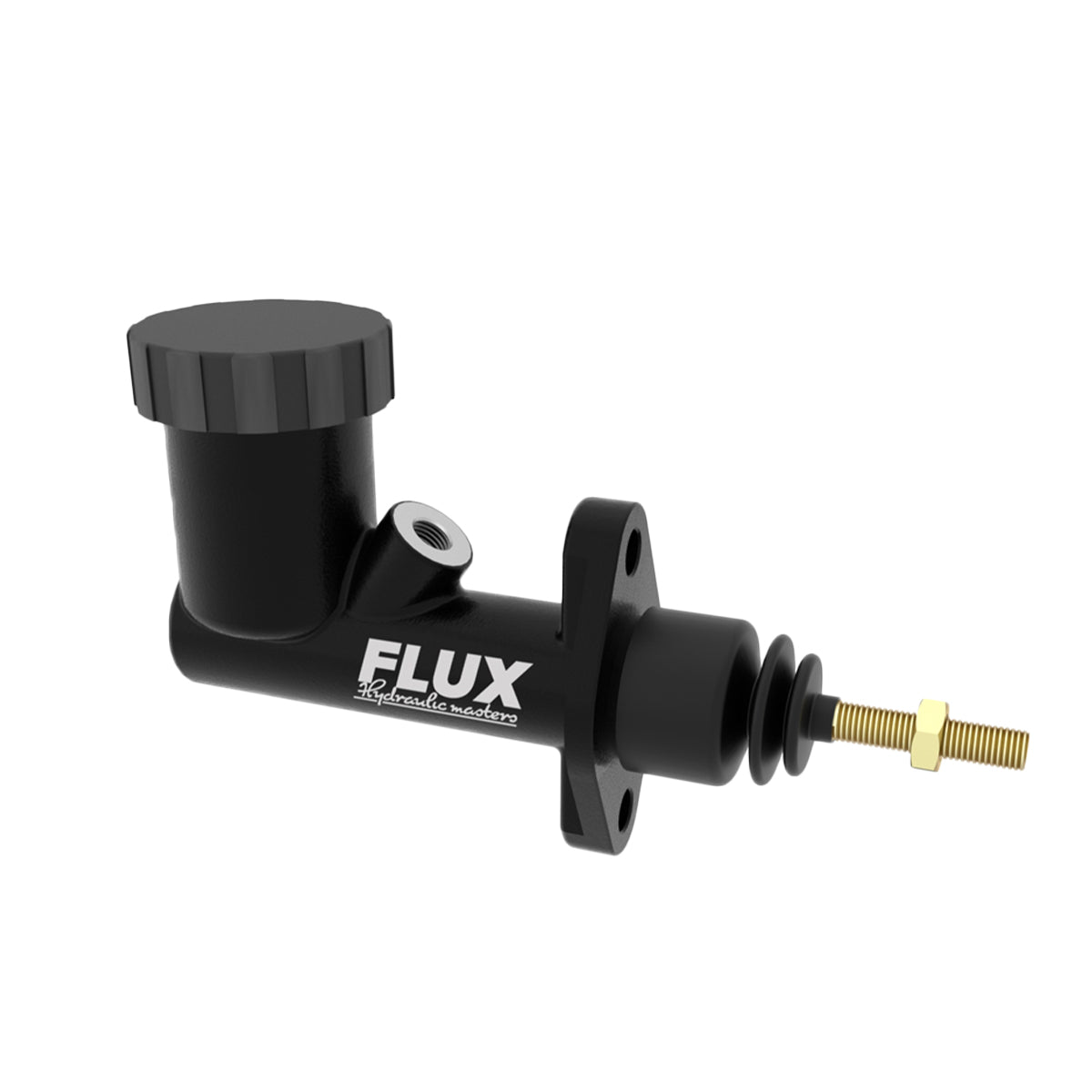

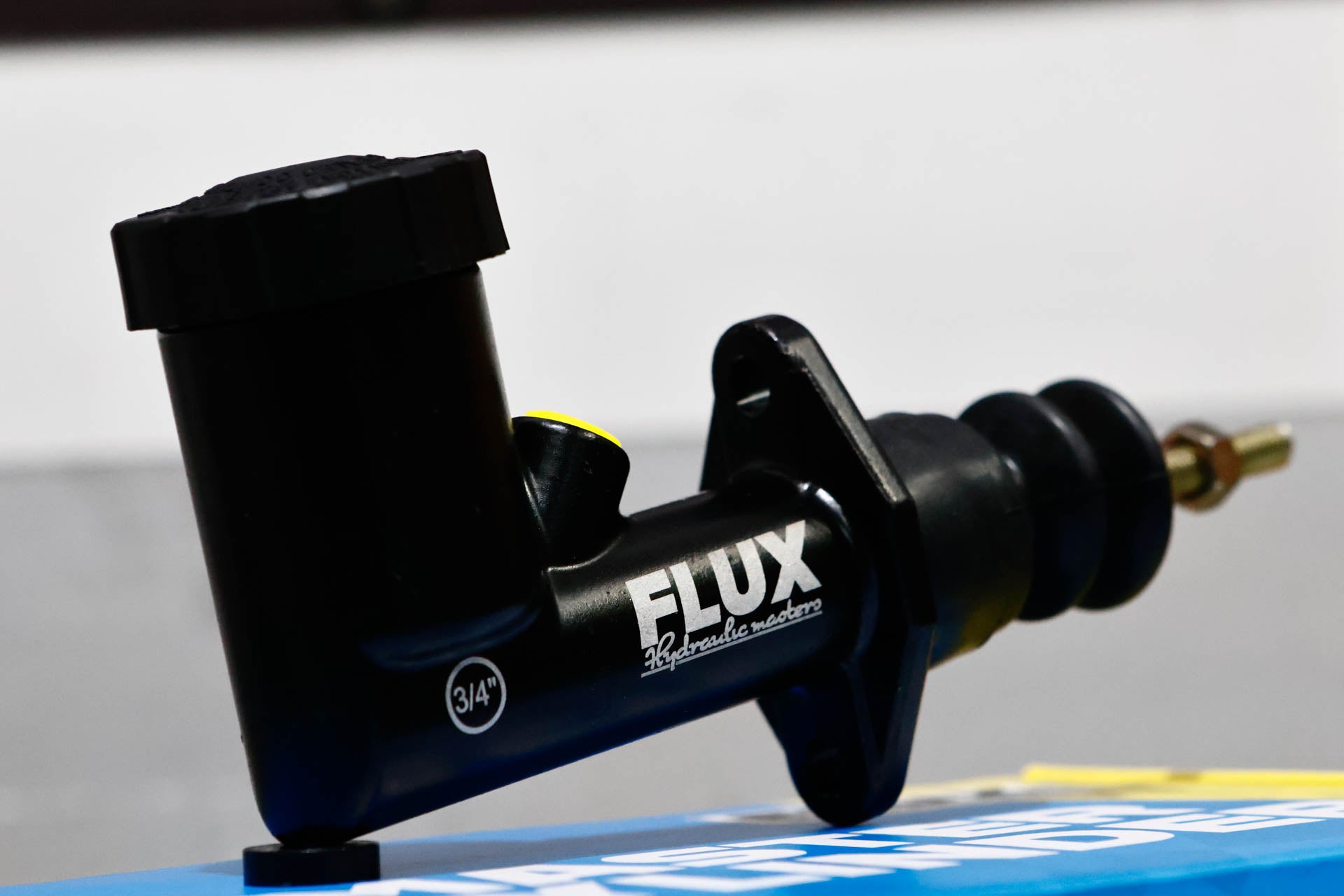

Stand-alone 3/4" internal reservoir master cylinder
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Looking for a dependable and high-quality master cylinder for your motorsport or custom application? Check out the FLUX Master Cylinders range! The ultimate solution for braking performance
Crafted with durability in mind, FLUX master cylinders feature a black E-coating and high-pressure die-cast aluminum design, along with superior quality EPDM rubber seals.
You can trust in the safety and performance, as they're tested to SAE J1153_201202 standards. They're compatible with standard DOT 3, DOT 4, and DOT 5.1 Glycol ether based brake fluids, plus, they can be easily rebuilt with readily available rebuild kits!
- Engineered for performance
- Lifetime warranty against manufacturing defects
| BORE SIZE | 0.75 (3/4 in) |
| STROKE |
1.25 |
| ARTEA (in²) | 0.44 |
|
VOLUME (cu in) |
0.55 |
| TYPE | Single outlet |
| OUTLETS | 1 |
|
MATERIAL |
Aluminium |
| FINISH | E-coating Black |
|
RES TYPE |
Internal |
| INLET | n/a |
|
OUTLET |
3/8-24 |
| ROD THREAD | 5/16-24 |
|
BOLT SPACING |
2-14" |
Choose options
FAQs
How do I know which size master cylinder to choose?Typically the 5/8 master cylinder is proven on an S/R/Z chassis running the single or two pot brakes, the lever feel with this master is balanced, having a longer more typical throw to gauge feel while still efficiently locking the rear brakes.
The 3/4 master cylinder is larger, so when used in that same setup the lever feel will be more direct, firmer, and require less throw to lock the rear brakes. However, if you are running larger brakes/wheel tire setup then the standard two pot and 235 width tire and do require a bit more bite, we would suggest this master cylinder.
Do FLUX Master Cylinders have warranty?
Yes! All FLUX master cylinders have lifetime warranty.
Are FLUX Master Cylinders rebuildable?
Yes! Rebuild kits are available to ensure low cost and easy maintenance on all master cylinders.
Do you offer other masters?
We offer a wide range of FLUX masters to suit 3/4", 5/8", 7/8" applications, available in both integral and inline reservoir variants.
What type of flare do the FLUX master cylinders have?
They have a SAE 45 degree flare which will work with both an inverted flare (single) and a double flare.
VEHICLE COMPATIBILITY
Nissan
C33 LAURELC34 LAUREL
C35 LAUREL
CEFIRO A31
R31 SKYLINE
R32 SKYLINE GTR
R32 SKYLINE GTS-T
R32 SKYLINE GTS4
R33 SKYLINE GTR
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R33 SKYLINE GTS4
R34 SKYLINE GT
R34 SKYLINE GT-T
R34 SKYLINE GTR
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
WGNC34 STAGEA
Z32 300ZX
Z33 350Z
Z34 370Z
Infiniti
G35G37
Scion
FR-S ZN6Subaru
BRZ ZC6BRZ ZD8
Toyota
GR86 ZN8GT86 ZN6
