Clutch master cylinder adapter to suit 240sx/Skyline
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Clutch master cylinder adapter to suit 240sx/Skyline
Albuquerque NM
8524 Indian School Rd NE
Albuquerque NM 87112
United States
Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 790 reward points
Earn points by signing up for our rewards program
When doing a conversion or simply upgrading your clutch master cylinder to a universal off the shelf option, you will find the PCD is not the same as the OEM S/R chassis'.

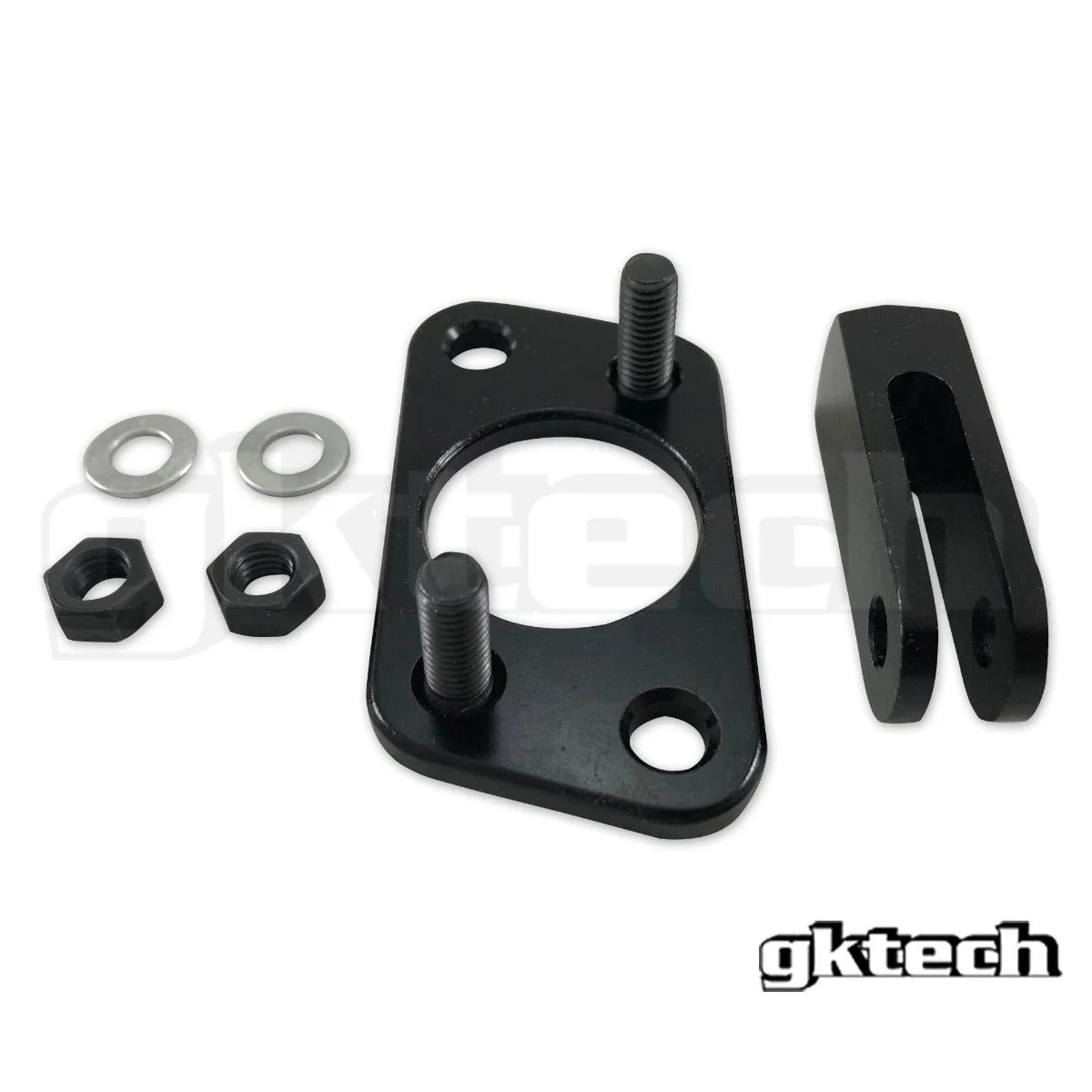

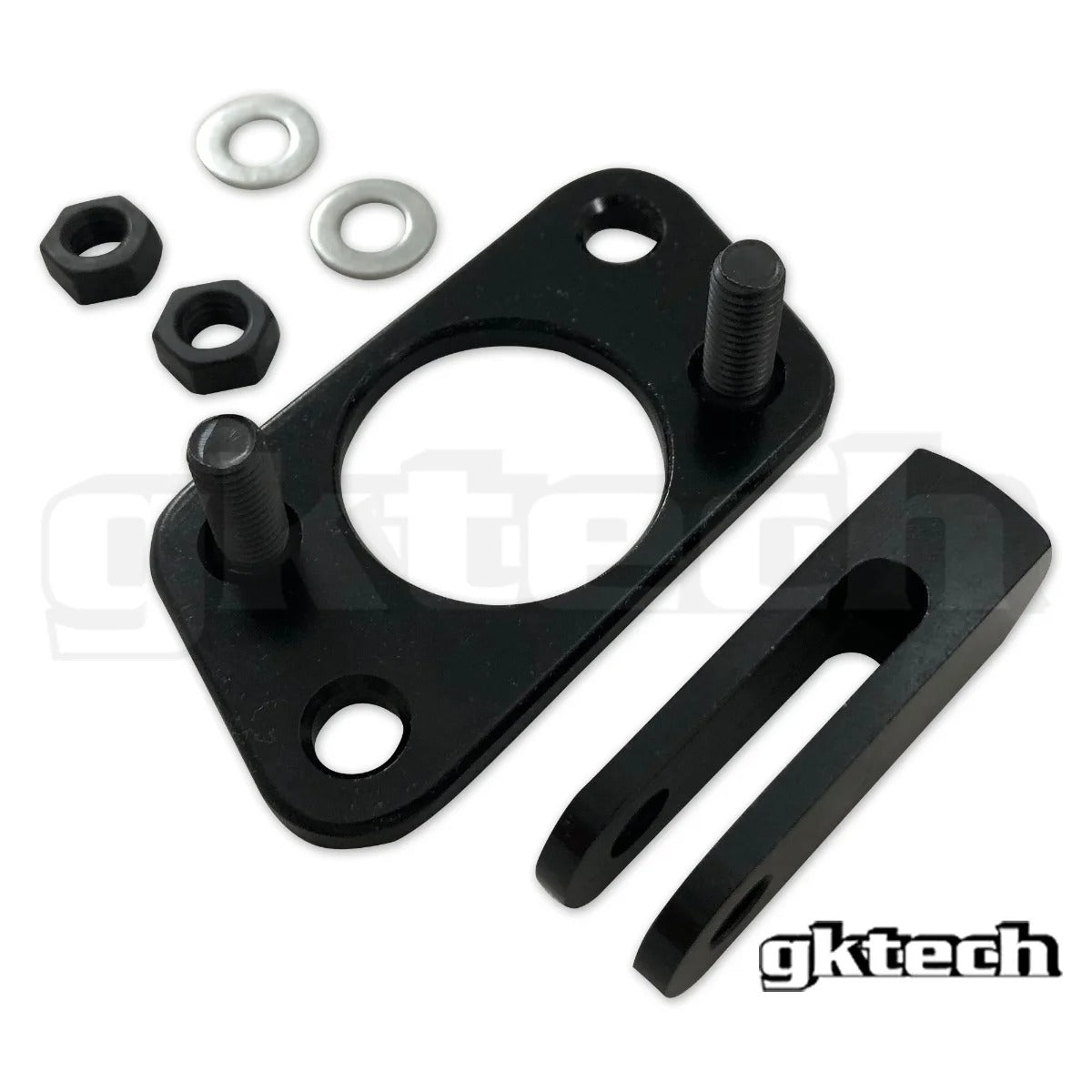

The GKTECH master cylinder adapter kit simply allows you to do so while taking up as little room as possible.
This little bad boy measures 6mm thick and also comes with countersunk allen key bolts and a clevis to suit your desired master cylinder.

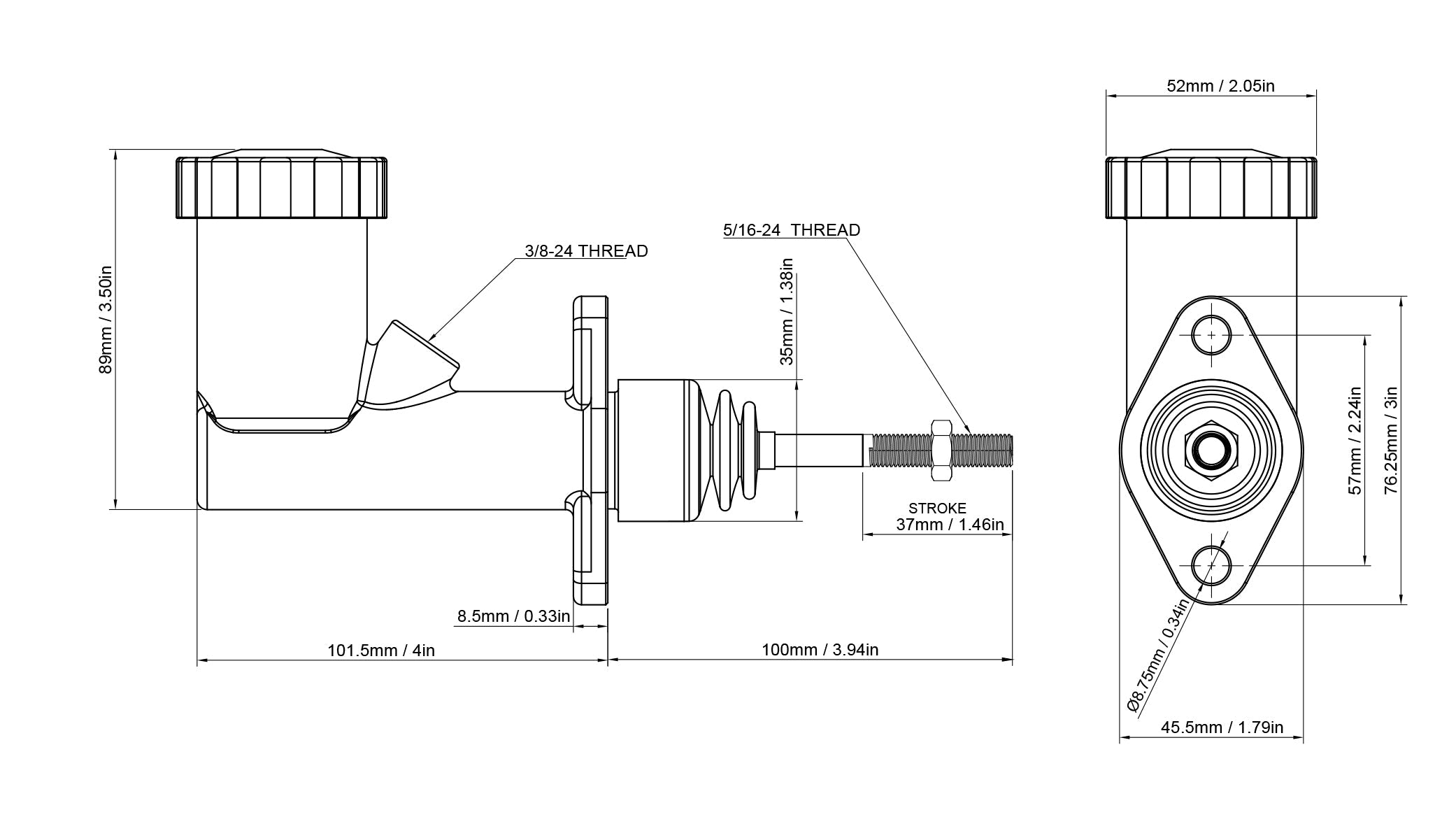

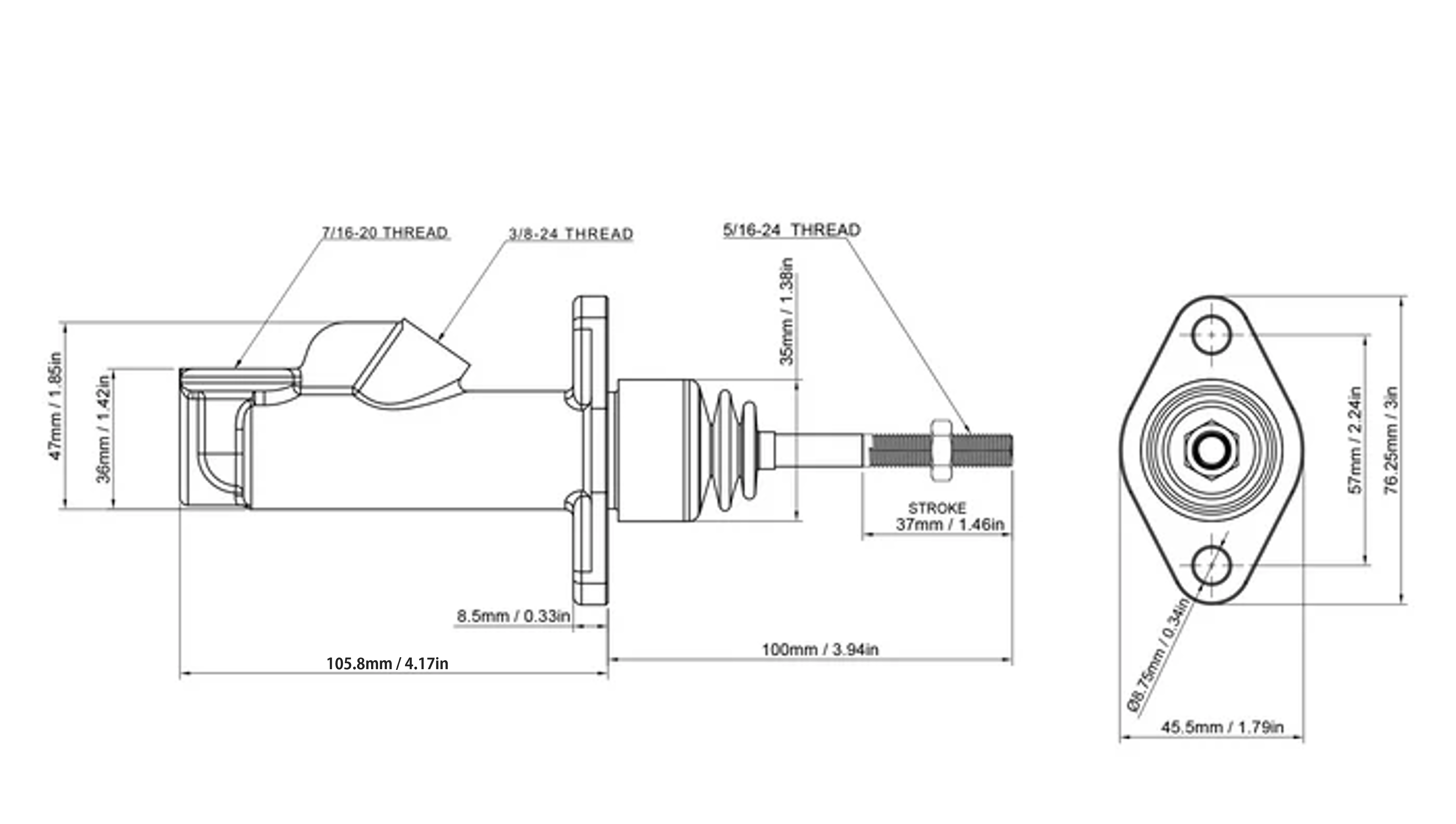

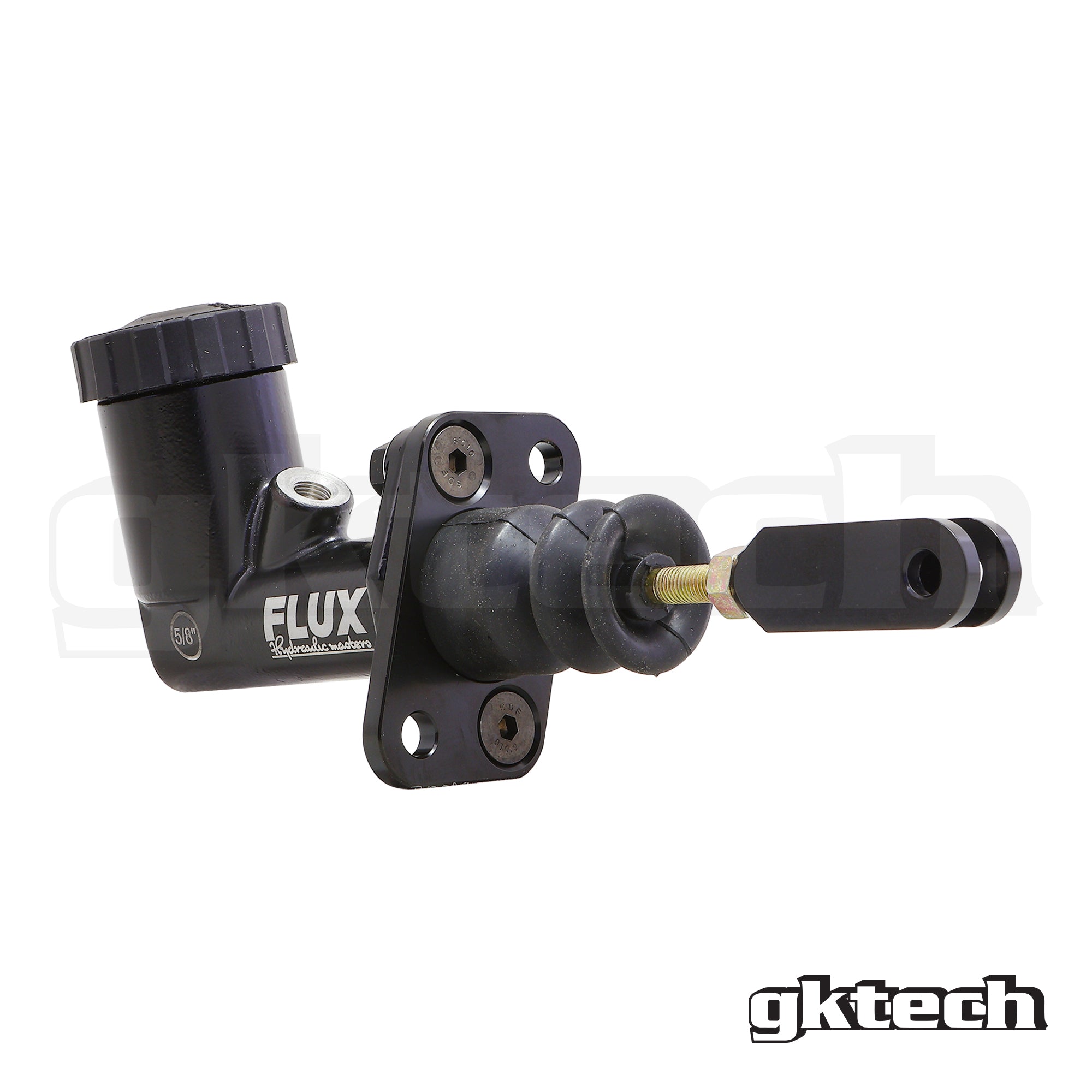

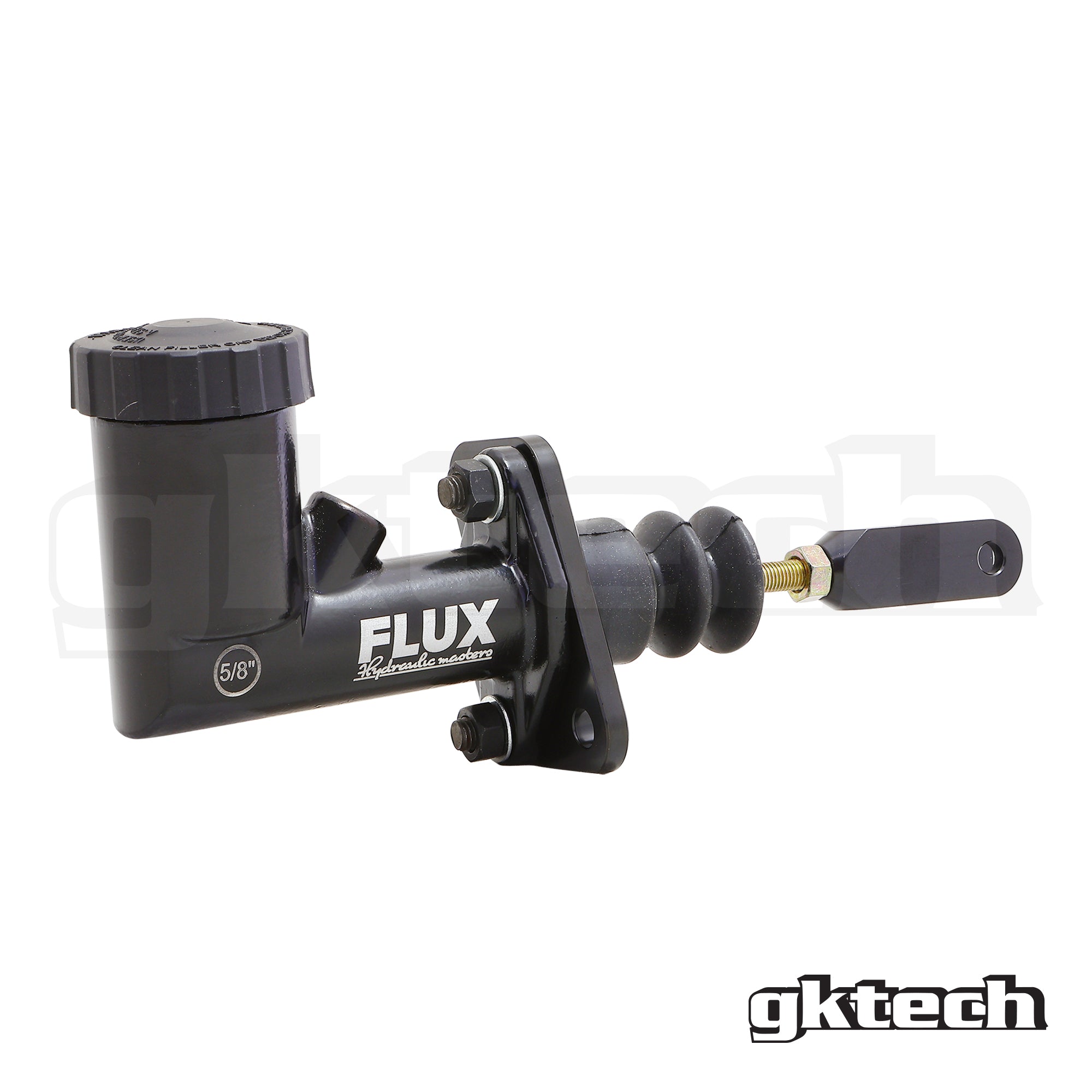

We have also included the option of three different master cylinders that we recommend. We suggest double checking the measurements supplied to ensure there are no clearance issues between the master cylinder and the engine.
FAQs
Will this fit my car?The adapter plate is made to suit Nissan S or R chassis' (non GT-R) and the off the shelf master cylinders we list here along with our custom clevis.
What's the advantage of using the Gktech master cylinder adapter?
This part allows you to bolt up an off the shelf master cylinder with ease.
What modifications are required, is this hard to fit?
No modifications are required, this is a direct fit.
Is there anything else needed for installation?
You will need to ensure you use the correct brake lines which we do sell as an option, but in terms of the plate itself will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, the plate is very easy to install. Simply fit the plate and the clutch master. Then you will need to top up the clutch fluid and bleed the clutch system.
How do I know which size master cylinder to choose?
The smaller the master cylinder the softer and longer the clutch pedal will feel. The larger the master cylinder the shorter and firmer the pedal will feel.
If you are running a standard or near standard clutch, then the smaller master cylinder is recommended. If you have upgraded or running a stiffer clutch assembly, t hen the larger is recommended.
VEHICLE COMPATIBILITY
Nissan
C33 LAURELC34 LAUREL
C35 LAUREL
CEFIRO A31
R32 SKYLINE GTS-T
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Z32 300ZX
