V3 4130 high tensile offset steering rack extenders
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.V3 4130 high tensile offset steering rack extenders
Albuquerque NM
8524 Indian School Rd NE
Albuquerque NM 87112
United States
Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 495 reward points
Earn points by signing up for our rewards program

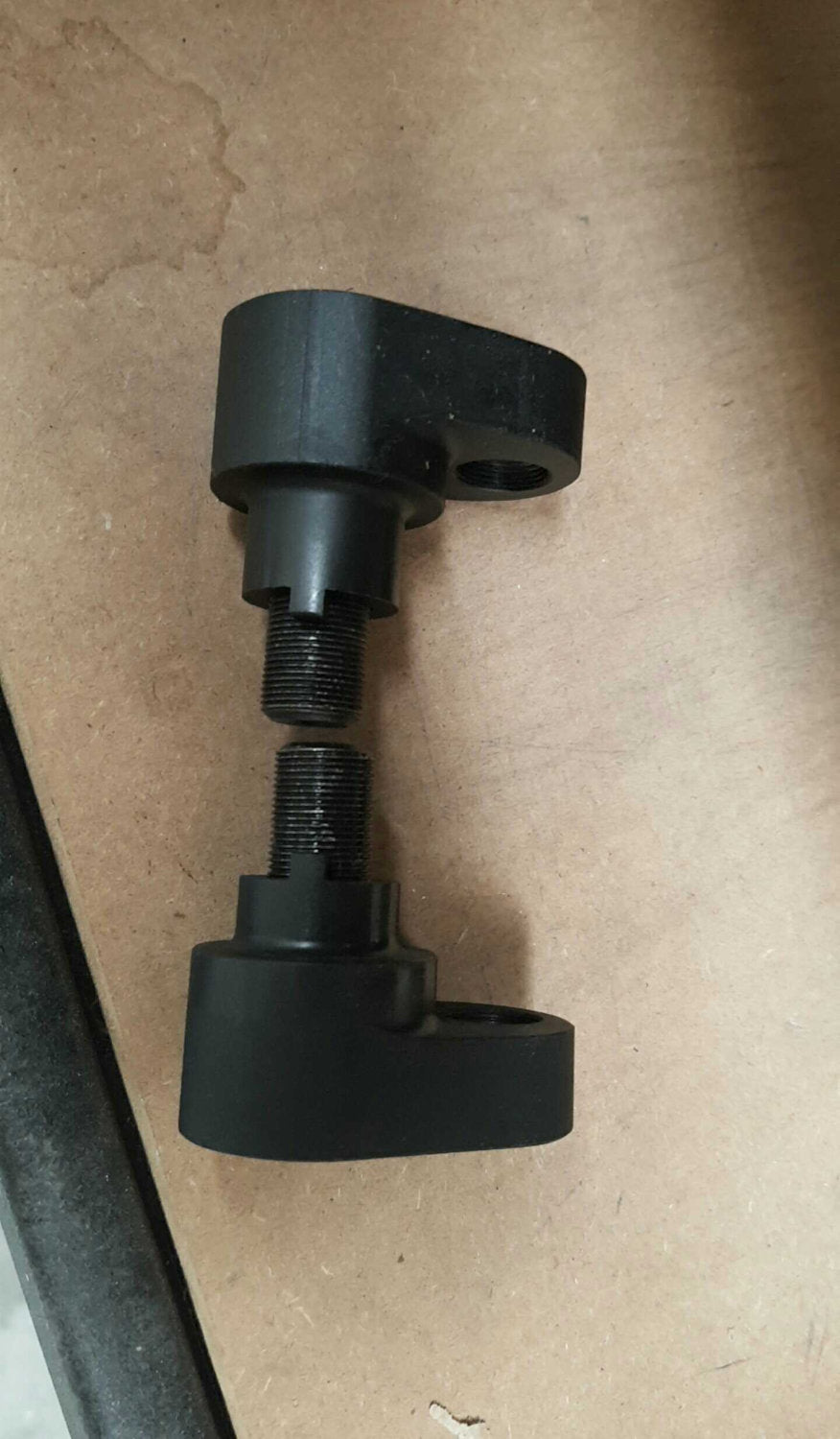

The GKTECH high tensile 4130 zinc coated offset tie rod extenders screw on to the end of either standard or aftermarket tie rods and allow the tie rods to travel further into the steering rack which creates more steering lock with the added bonus of moving the tie rod position forward 0.98" (25mm) which helps reduce steering bind. Great for drift or getting out of parking spots.
The offset rack spacers are a great alternative to moving the steering rack forward and offer 0.74" (19mm) extra steering lock without compromising on the amount of thread left in the steering rack.
- DIY installation (not as easy as the washer install but still not hard at all)
- CNC machined high tensile zinc coated 4130 steel with grade 12.9 bolts
- 1/2" internally driven drive bolt size for an easy install
NOTE: These may require notching to the early model steering racks, as the OEM notches can vary across models/years.
FAQs
Are these sold individually or as a pair, your price is so much cheaper than the others selling these!?These are sold as a pair. Ie. the price listed is for a pair. These are a pretty straight forward item to machine up, it's not rocket science.
How does this offset steering rack spacer work?
The offset steering rack spacers screw into your steering rack and move the tie rod end position forward 0.98'' (25mm). It helps reduce steering bind (aka tie rod goes over center). It allows the steering rack to travel an extra 0.74'' (19mm). An extra 0.74'' (19mm) of additional steering rack travel = more lock.
I've installed the rack spacer and I've got a heap of toe in, what happened?
After you have centered your rack (this is CRUCIAL) you may need need to trim your tie rod ends down to counteract the length that you've just put into the length of the rack. Whether you need to trim the tie rods down depends on your setup (Ie. if you've got longer LCA's or aftermarket knuckles you may not need to).
Do NOT trim too much off or else you'll need to get a new tie rod and only trim down once you've centered the rack. Note that the LH side has a larger spacer so it will need the most attention.
What's the difference between this offset steering rack spacer and the non offset steering rack spacer that you sell?
The offset steering rack spacer moves the tie rod end mount forward 0.98'' (25mm) where as the standard non offset steering rack spacer is a direct extension and doesn't relocate the mounting points. The offset steering rack spacer is only needed with aftermarket or modified knuckles where as the non offset steering rack spacer can be used with the standard knuckles.
What is the difference between your V1 and V3 offset rack spacers?
Our older revision had two different sized offset rack spacers, one short and one long, however, we revised the design to have them both at equal length, so that you did not need to center your rack again. We also have added 1/2" internally driven drive bolt sizes for an easy install!
VEHICLE COMPATIBILITY
- Nissan Skyline R32 GTS-T (2WD) Only
- Nissan Skyline R33 GTS-T (2WD) Only
- Nissan Skyline R34 GTT (2WD) Only
NOTE: #2: Both spacers are now made equal length and to be installed facing forward towards the front of the car, horizontally. These may require notching to the early model steering racks, as the OEM notches can vary across models/years.
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Z32 300ZX
Z33 350Z
Infiniti
G35USER GUIDE(S)
