The Z33 and Z34 OEM diff cover uses a single stud at the rear which is prone to breakage in high grip/hp setups. We make a diff brace which does help but a dual stud cover is the ideal solution.

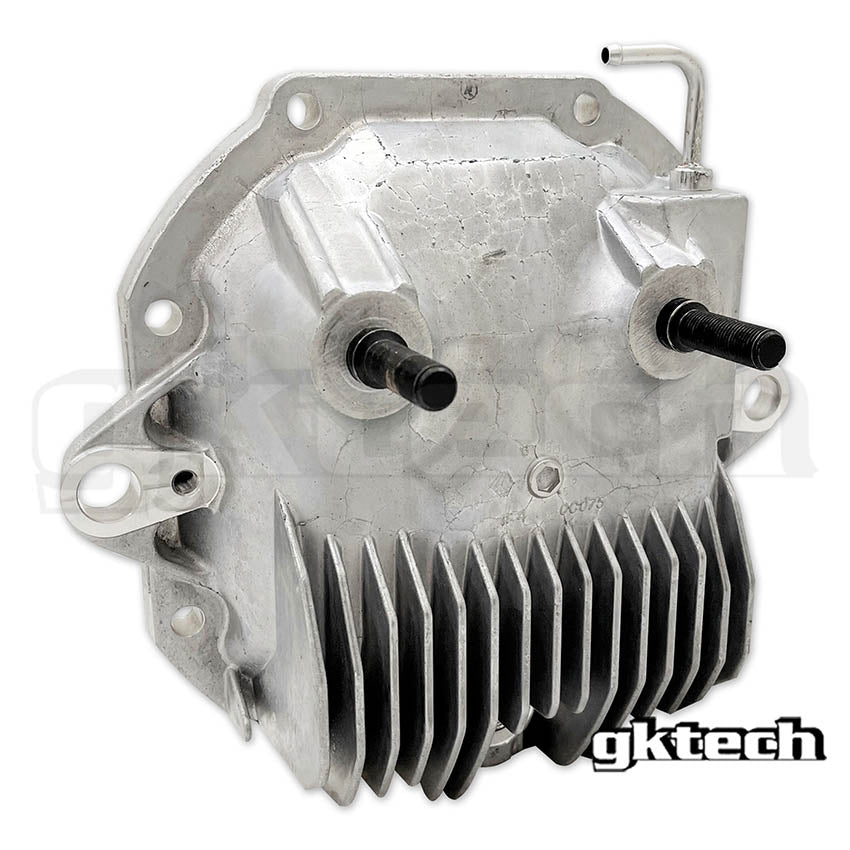

The 05-12 Pathfinder diff cover fits on the Z33 and Z34 diff but unfortunately the subframe doesn't have a provision for a second stud which is why we've made the option of either a bolt in or weld in secondary bush.
These also require the use of custom studs which we've also made to make the installation easier.
For best results to be used with solid diff bushes.
The OEM diff cover part number is 38351-0C075
Note #1: We no longer have Pathfinder diff covers. BYO (either used from a wrecker or new on eBay/Amazon etc)
Note #2: Steel weld guide is optional as we do include a cardboard template with the diff bush.
Note #3: When using the conversion studs you will have to slightly drill out your diff bushes from 14.5mm to 16.5mm to allow for the shoulder of the stud. This can be done with a hand drill and appropriate drill bit.
GKTECH
Pathfinder diff cover to Z33/Z34 subframe conversion bushings
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
The Z33 and Z34 OEM diff cover uses a single stud at the rear which is prone to breakage in high grip/hp setups. We make a diff brace which does help but a dual stud cover is the ideal solution.
The 05-12 Pathfinder diff cover fits on the Z33 and Z34 diff but unfortunately the subframe doesn't have a provision for a second stud which is why we've made the option of either a bolt in or weld in secondary bush.
These also require the use of custom studs which we've also made to make the installation easier.
For best results to be used with solid diff bushes.
The OEM diff cover part number is 38351-0C075
Note #1: We no longer have Pathfinder diff covers. BYO (either used from a wrecker or new on eBay/Amazon etc)
Note #2: Steel weld guide is optional as we do include a cardboard template with the diff bush.
Note #3: When using the conversion studs you will have to slightly drill out your diff bushes from 14.5mm to 16.5mm to allow for the shoulder of the stud. This can be done with a hand drill and appropriate drill bit.
Choose options
VEHICLE COMPATIBILITY
Nissan
Z33 350ZZ34 370Z
Infiniti
G35G37
USER GUIDE(S)
Install Videos
Assembly Guides
Download M14X-BBSH M16X-BBSH - Customer ASMDownload M14X-BBSH M16X-BBSH - Drilling Guide - Letter
Download Z33X-DBSH - Customer ASM
Download Z33X-DBSH - Drilling Guide - Letter
Download Z34X-DBSH - Customer ASM
Download Z34X-DBSH - Drilling Guide - Letter
Download Z34X-BBSH - Customer ASM
Download Z34X-BBSH - Drilling Guide - Letter
