Checking Dispatch Times...One of the biggest issues with looking for additional steering lock is clearance and one of the things that gets in the way is the swaybar.
We have developed an adjustable swaybar which not only has lots of clearance due to it's unique 3 piece desgn in the wheel well but as the main rod in the engine bay can be rotated up or down it has amazing clearance for those who have done engine swaps. Ie. RB, 2JZ, LS etc all clear with ease.
- Will support 70+ degrees of steering lock (your tires will hit the chassis rail before the swaybar lever)
- CAD designed and FEA tested
- Manufactured from spring steel (50CrV4) with a 25.5mm OD.
- Stiffness of 1087 Lbf/in / 192 N/mm, with motion ratio of 0,53 and aroll stiffness of 576 Lbf/in / 101,8 N/mm.
- Adjustable in stiffness with 3 holes that increase/decrease the length of lever arm, which cause the force applied on the torsion bar to be increased/decreased.
- Includes new polyurethane D bushings. Does NOT include swaybar end links however the OEM style can be used and we do sell a replacement set.
- 3 piece design allows for adjustment in pitch of the bar which is necessary on low cars.
Fitment notes:
#1 Will not fit on Skylines
#2 Will not fit with caster rod/K frame bars although will fit with the Nismo Power Brace but ONLY on S14/S15's (not S13's with the Nismo Power Brace)

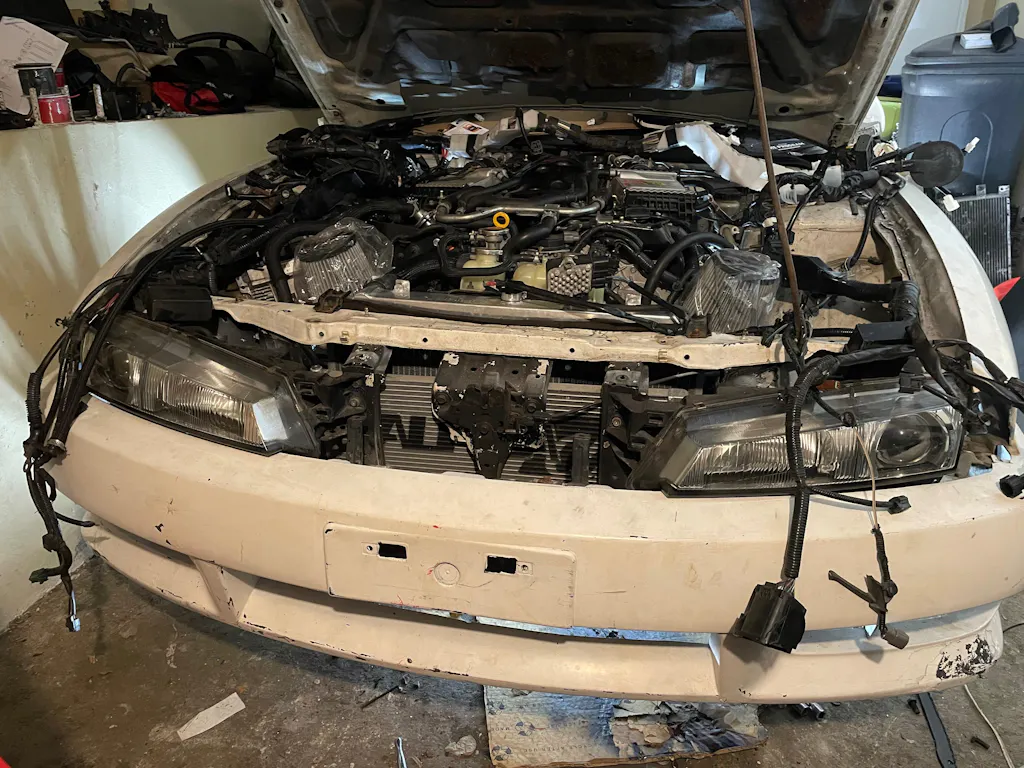

#3 WILL fit with any JZ, LS or RB engine swap. There is HEAPS of clearance
FAQs
Which levers should I order?The levers are entirely chassis dependant. If you have an S13 or 240sx then order the S13 version. If you have an S14/S15 then order the S14/S15 version regardless of what LCA's you have in your car.
How much angle can these swaybars clear?

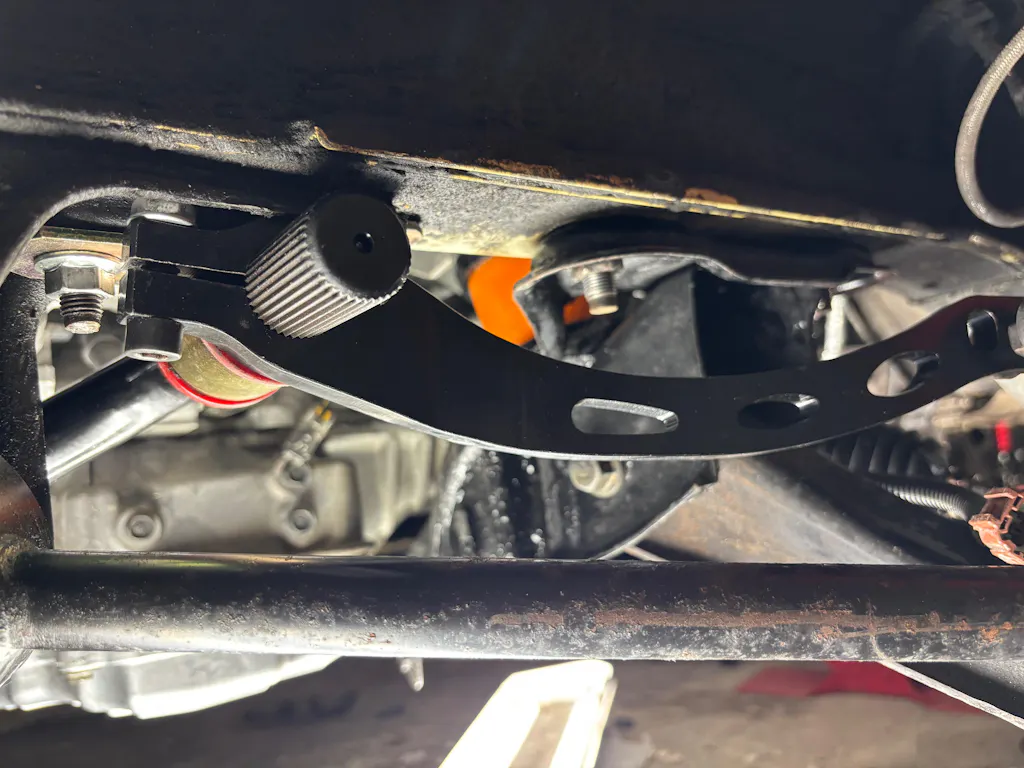

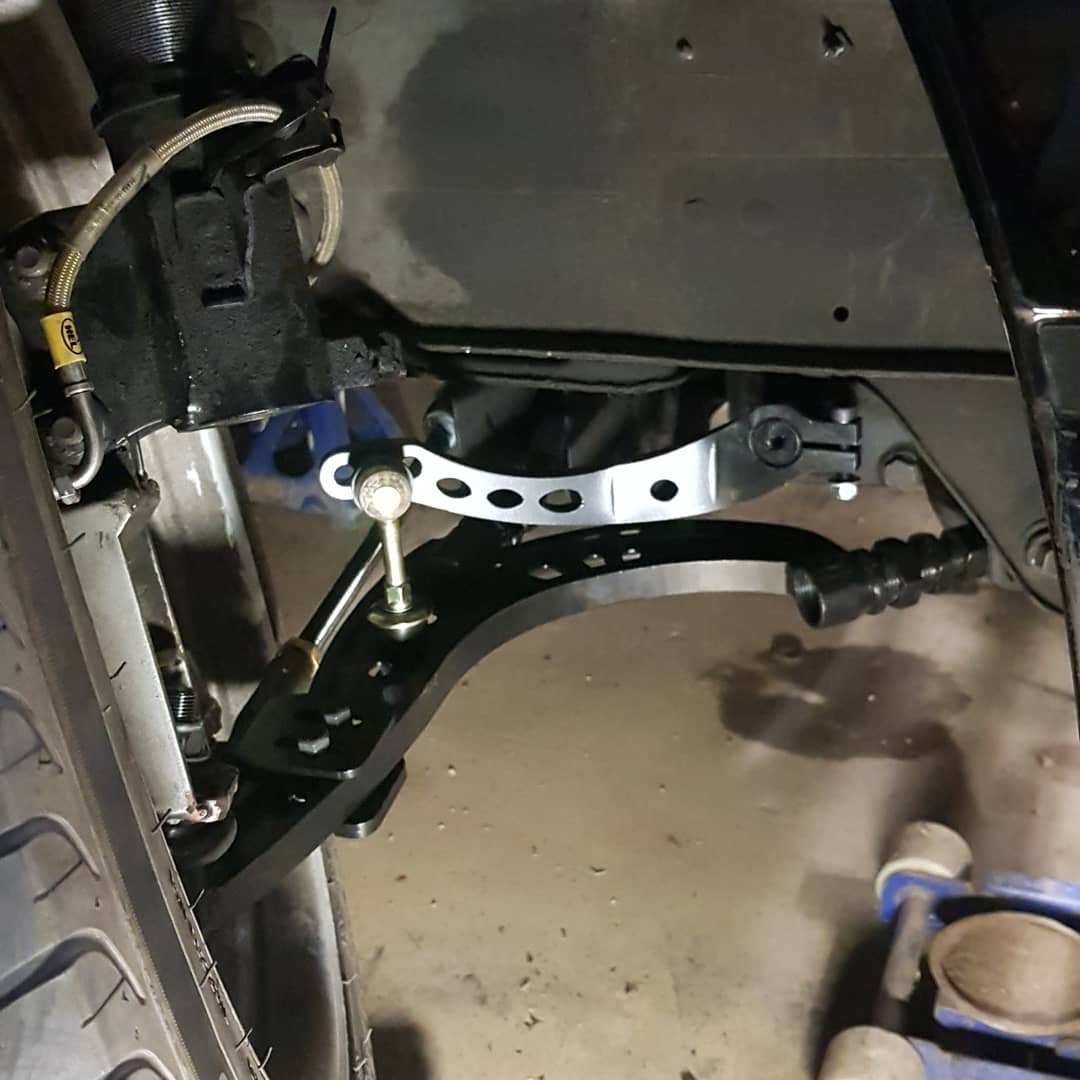

Our swaybar levers sit underneath the chassis rail and do not protrude past where your wheel would normally hit. Ie. you'll hit your chassis rail before you'll hit the swaybar lever.
How hard are these to fit?
They are quite easy to install but mechanical knowledge is required. Remove your standard swaybar, grease the bushings and bolt the new bar in its place.

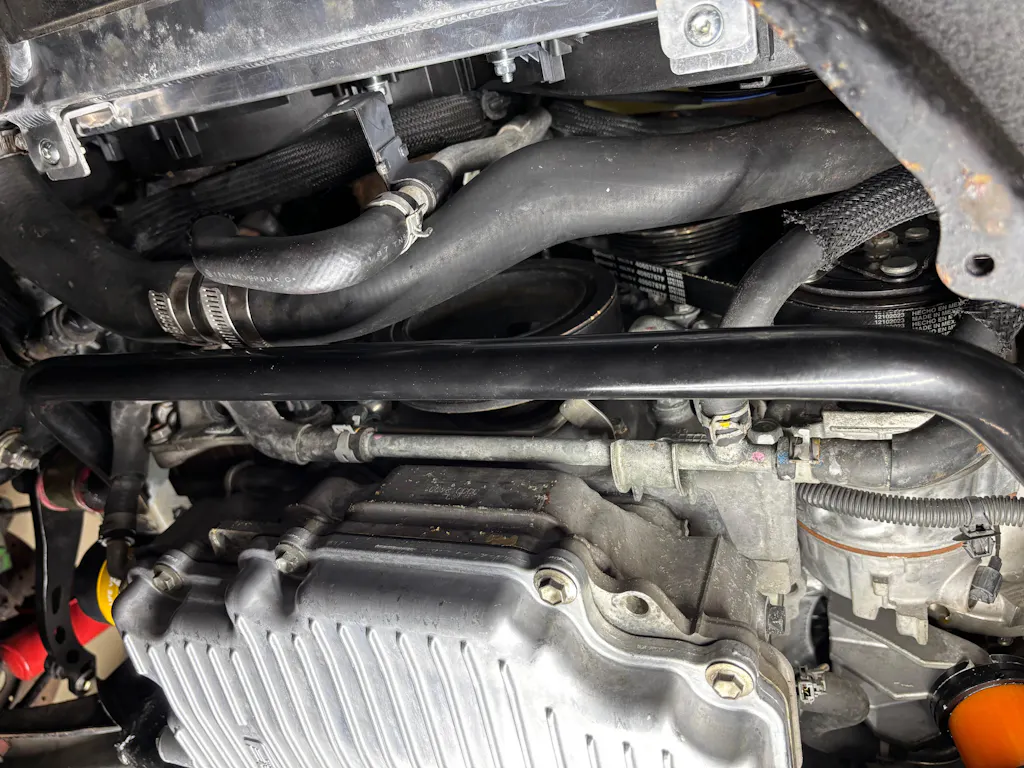

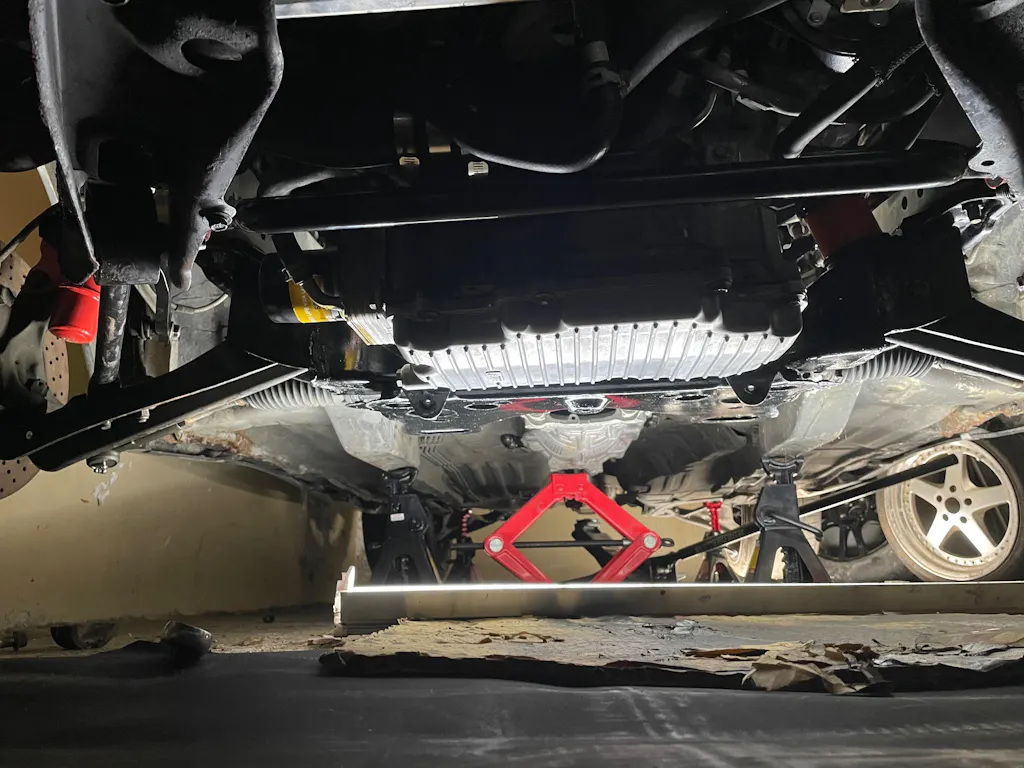

Will the swaybar clear my oil pan?
We have test fit these on LS, RB and 2JZ conversions in S chassis' with loads of clearance. In the event that this swaybar doesn't clear your oil pan then we would be happy to provide a refund but as far as we know this swaybar has more clearance than any other available.
What happens if a PU bushings needs to be replaced?
We have stock of the PU bushings on the shelf but being Polyurethane they should last a very long time.
Are these suited to circuit/grip racing?
Yes, absolutely. Besides having lots of clearance they are also a great swaybar and are adjustable.
Do I need to do any other modifications to get the most from this swaybar?
Spherical end links are never a bad idea and we recommend the use of them with our swaybar, you can find them here:
https://us.gktech.com/premium-spherical-swaybar-front-end-links
What is the outside diameter of the swaybar?
25.5mm
VEHICLE COMPATIBILITY
Nissan
CEFIRO A31S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
