Z33 350Z / G35 In-line hydraulic e-brake line kit

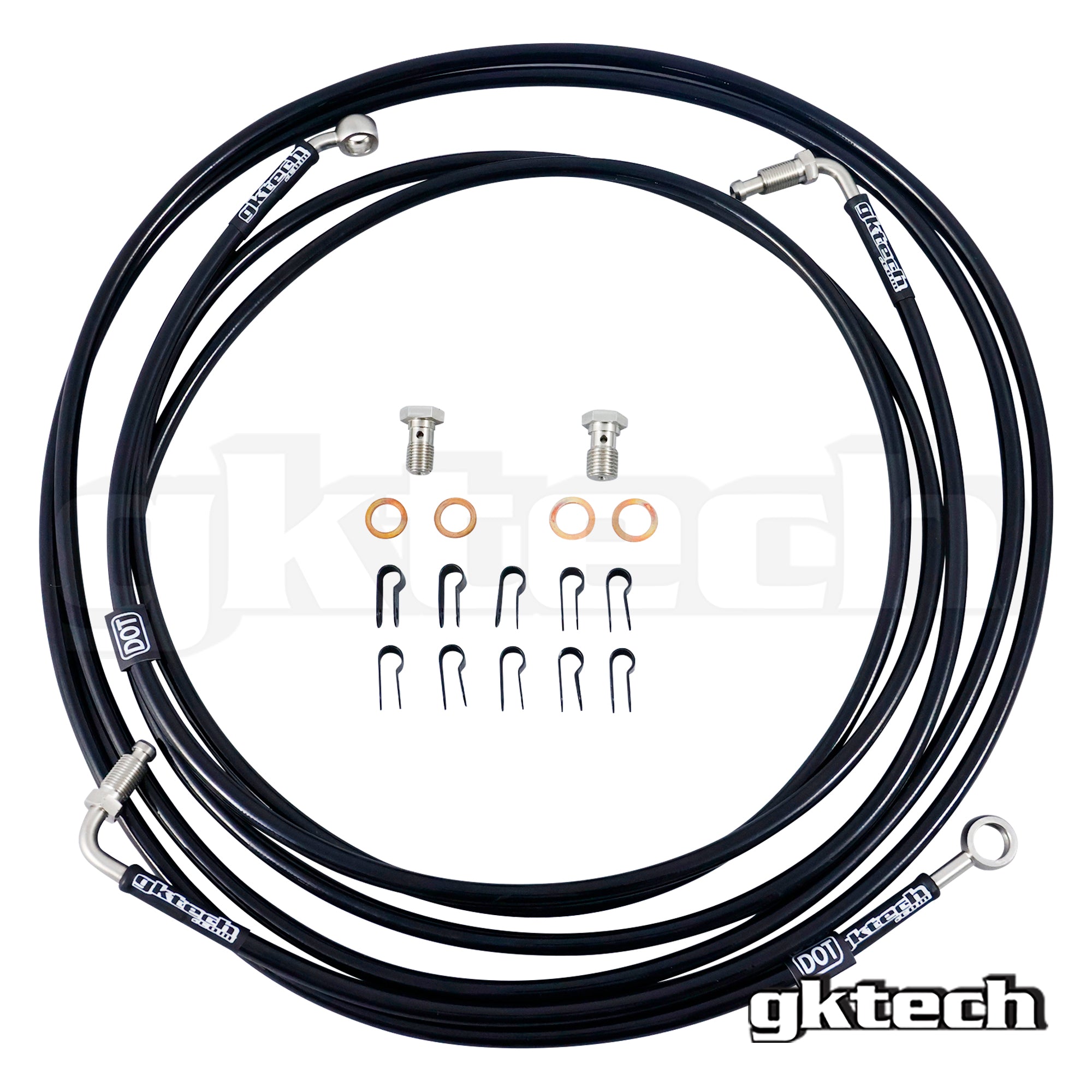

The GKTECH In-line braided brake line kit is designed to be used with your existing brake calipers. These lines are to suit the Flux master cylinders we sell along with our ABS delete kit and our hydraulic e-brake assembly.

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines DOT compliant in the USA and they are marked as such on the brake line assemblies.

The FMVSS106 testing procedure that the lines have been tested against includes the following tests:

• 370lbs pull test
• 35 hour whip test
• 7000psi burst test
• -45degF to 245degF temperature tests
• 24 hour salt corrosion resistance test

- For race cars only however no permanent modifications are required.

NOTE: Can NOT be installed on cars with ABS still fitted however can be used in conjunction with our ABS delete kit

NOTE #2: Can ONLY be used with a Brembo equipped vehicle. Will NOT work on a Non Brembo car or car that is running a Non Brembo master cylinder.
