HFM.Parts BM57 Brake Master Cylinder - LHD

Name: HFM.Parts BM57 Brake Master Cylinder - LHD
Brand: HFM.Parts
SKU: HFMBM57LHD
Price: 179.0 USD
Availability: InStock
Rating: 5.0 (5 reviews)

$179.00 USD

SKU: HFMBM57LHD

In stock

Quantity:

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.

Pickup available at Albuquerque NM Usually ready in 24 hours

Albuquerque NM

Pickup available, usually ready in 24 hours

8524 Indian School Rd NE
Albuquerque NM 87112
United States

📦

Free Shipping on orders over $250

Checking Dispatch Times...

Order and get upto 895 reward points

Earn points by signing up for our rewards program

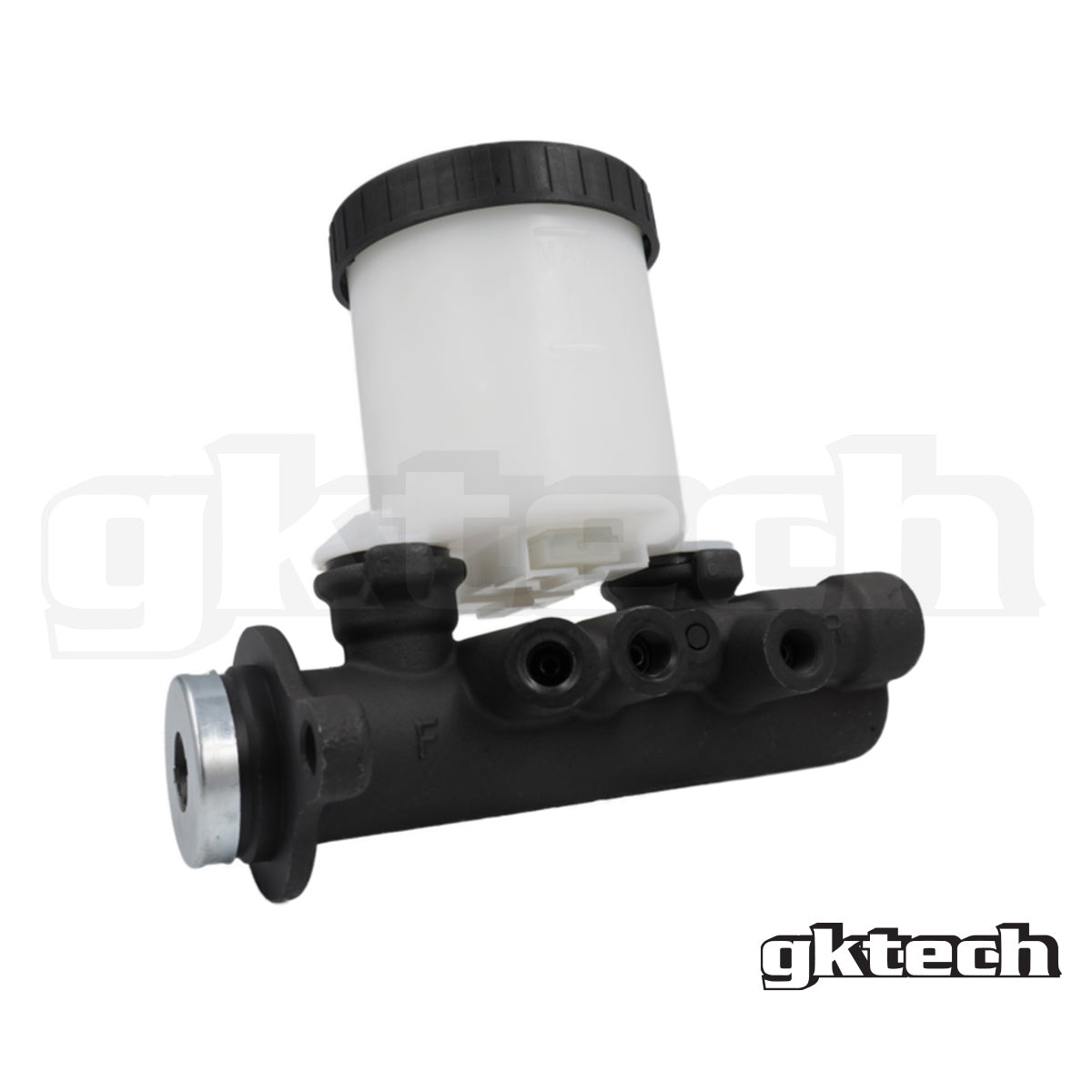

The HFM.Parts BM57 Master Cylinder features a 17/16 inch (27mm) piston bore size and is suited to both ABS and Non-ABS setups.

Perfect for if you intend to increase your braking performance and reduce that spongy pedal, giving a shorter, firmer pedal.

The product is suited for LHD models specifically, however can be used on RHD when using the Gktech hard line delete kit or ABS delete kit.

The product is suited for LHD models specifically.

For the RHD variant, please refer to our other listing here;
HFM BM57 Brake master cylinder - RHD

NOTE - If you have ABS you will need to block either the front most(closest to booster) or middle port (as they are the same port just split in two) with the provided tapered grub screw.

FAQs

My brake lines feed from the top/bottom, can I still use this Brake Master?
Yes. Although our brake master is designed with side ports, most brake lines can be massaged around until they reach the brake master’s ports.

The fluid sensor connector is on the wrong side, what can I do?
You can easily swap the sensor connector to either side of the BM57 by following these steps.

On the terminal side, push a small flat screwdriver in between the sensor connector and the bottom of the reservoir to lightly pry apart the lock tab. On the opposite side of the sensor connector, push through to pop it out. This is much easier to do prior to installation!

VEHICLE COMPATIBILITY

Nissan

S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
Z32 300ZX

WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov

HFM Saves me from RockAuto Trash

Replaced a RA BMC that failed for the front calipers on my S13 with the HDM BM57 BMC, I have an ABS car, and ABS booster, Factory calipers and Stainless Steel hardlines.

The pedal experience is no joke, significantly better than I was hoping for. The master is well packaged, and functions as expected, I bench bled the master, installed and did a full bleed on my brakes.

I'll put one of these on any S-Chassis or compatible car now without hesitation. Worth the coin.

Great product and service

Well it's only a master cylinder but I can say that it hasn't put me into a wall, car, or building yet. Shipping was fast and order process smooth.

BM57

Pick was easy and fast, product was great quality and worked perfectly no issues at all. Very happy customer, definitely recommend.

First time...

This is the first time I have received the chance to leave a review. I will not talk about there high quality products, I will instead talk about the best customer service I have ever seen in the industry. Hell in any industry! They go the extra mile to take care of there customers.

Great master cylinder

I just upgraded my S14’s brakes to the Akebono calipers and used this master cylinder,pedal feel is phenomenal and quality of the master cylinder is top notch. Another great product from GKTECH. I do run many of their products on my S14
