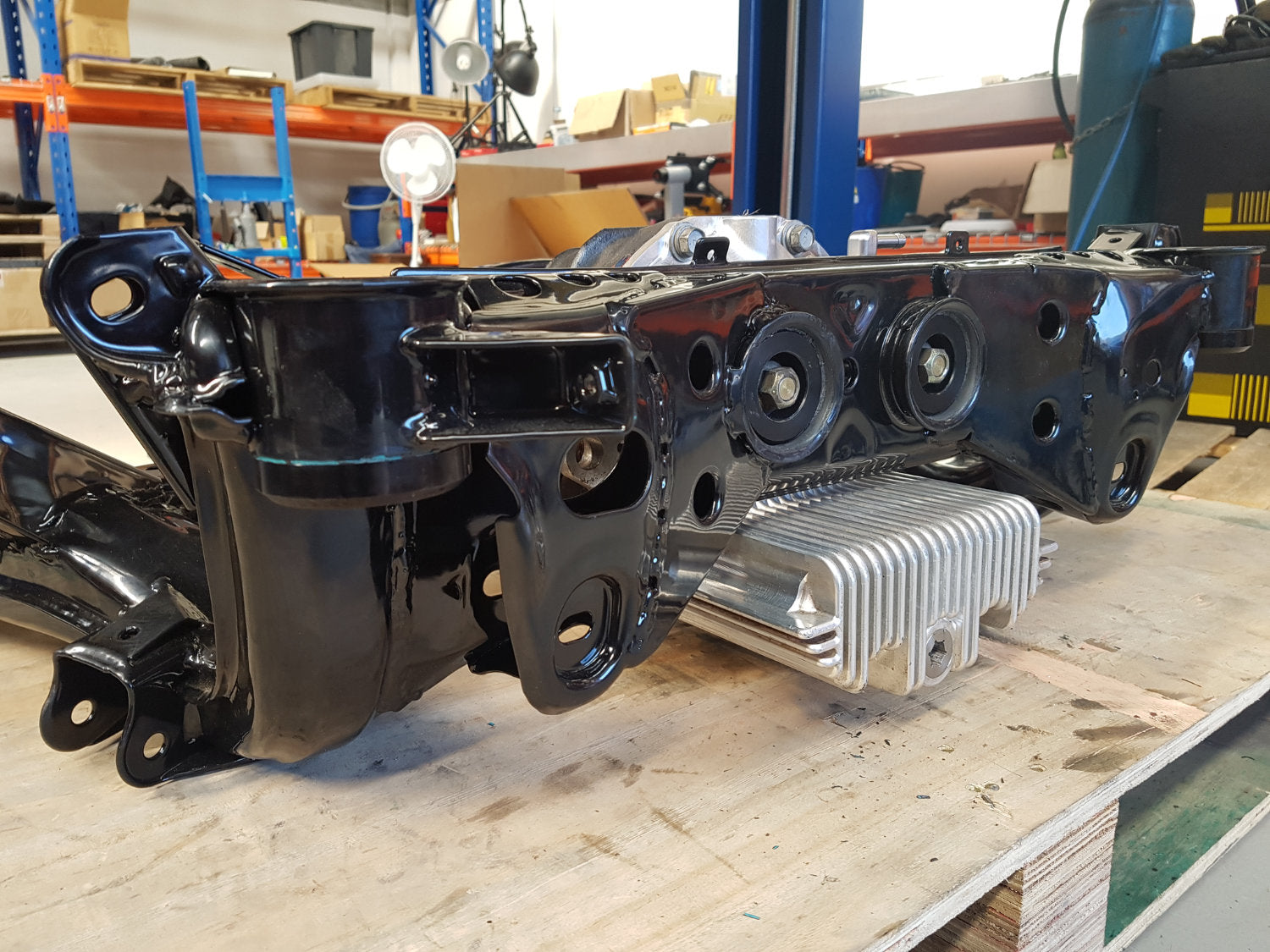

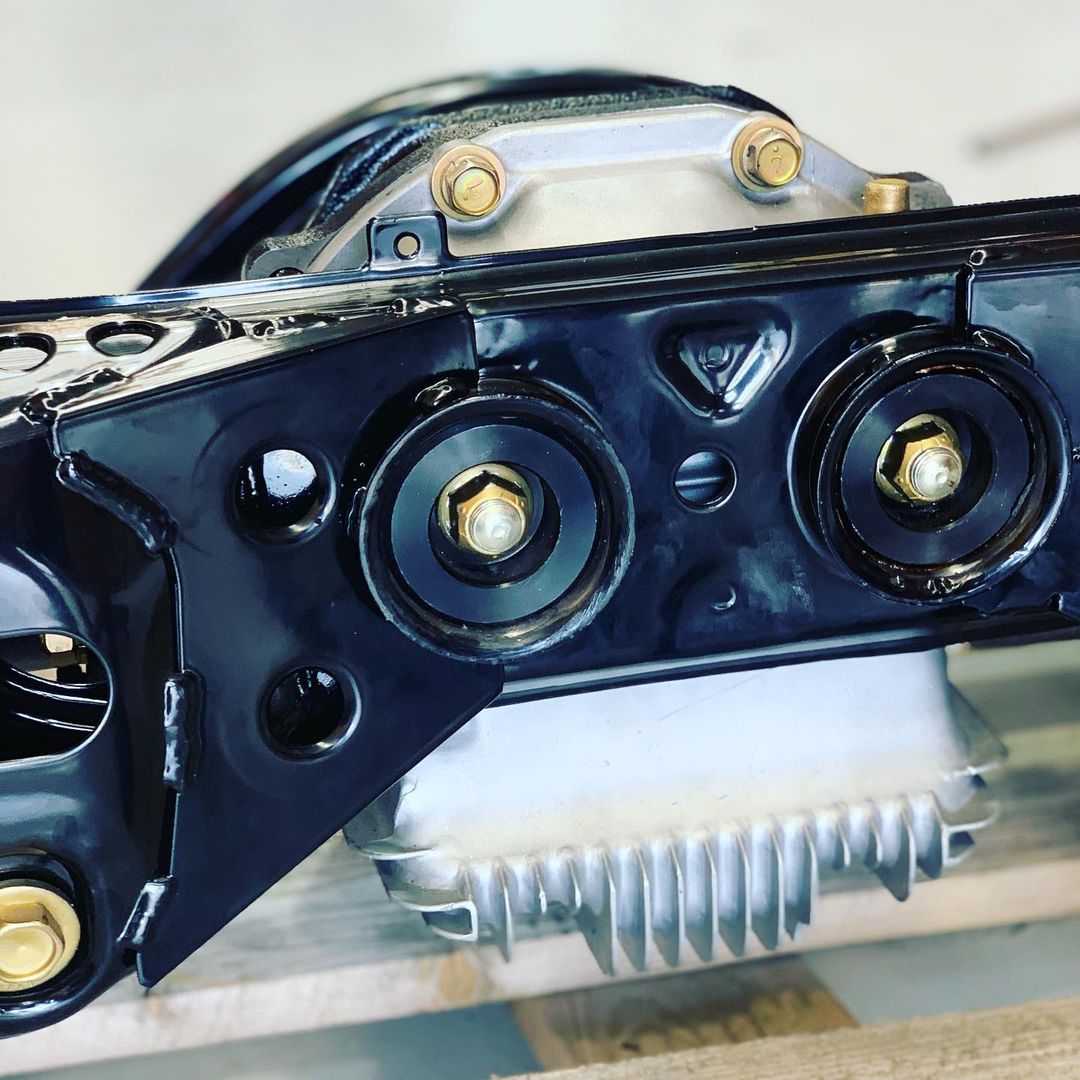

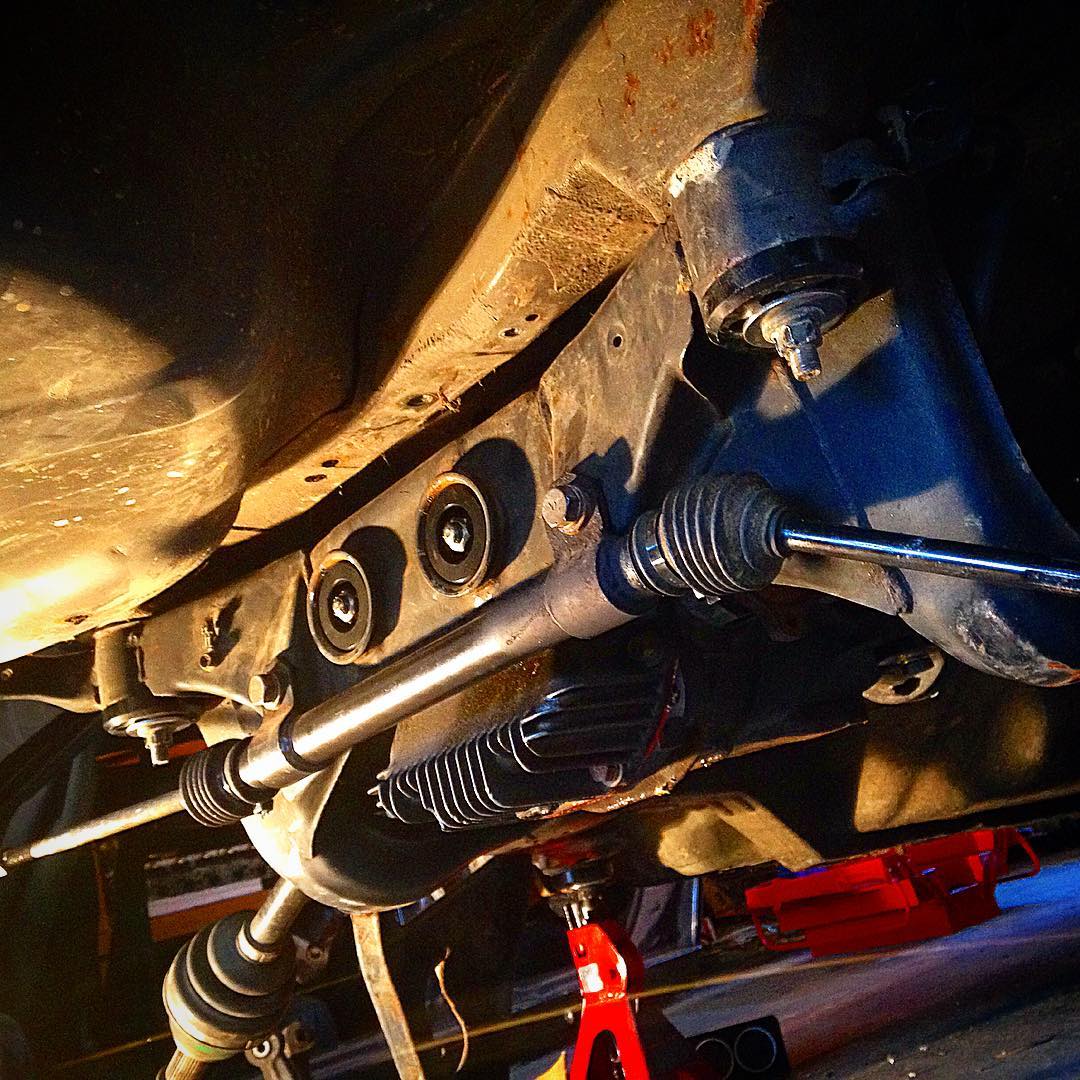

The GKTECH solid aluminium diff bushes are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.
- CNC machined 6061-T6 aluminium and anodized black
- Available to order as front, rear or front and rear kit
Front, rear or front and rear?
Front only:
The front diff bushes are to be used when installing an S14/S15/R33/R34 diff in an S13/R32 subframe. The S14/S15/R33/R34 diffs have bushes on both the front and rear of the diff whereas the S13/R32 diffs do not. You use the original rear diff cover and then to get the front of the diff positioned correctly and then these bushes are to be installed.
NOTE: Longer front mount bolts are required when installing an S14/S15/R33/R34 diff in an S13/R32 subframe (20mm longer = 80mm thread length). Nissan OEM part number is 55424-33P00
Rear only:

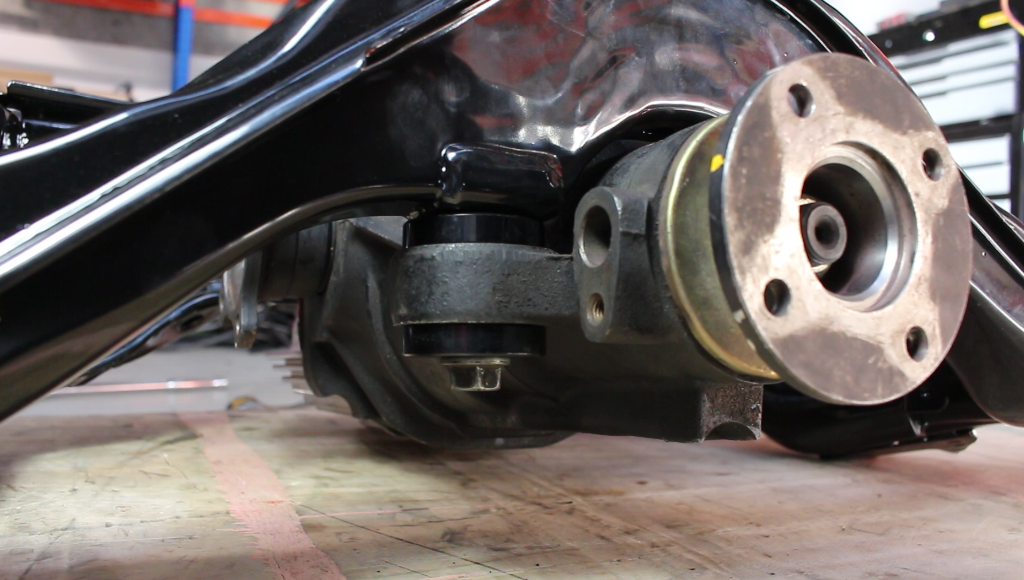

Not very common but if you're running an S13/R32 diff in an R200 subframe (2 bolt cover) you will only need the rear bushes as the front of the diff is already solid mounted.
Front and rear:
All those non conversion 2 bolt cover cars. eg. S14, S15, R32 GTR, R33, R34, C33, C34 and C35
We also offer a super handy diff bush removal/installation tool, more information can be seen here - https://us.gktech.com/s14-240sx-r33-skyline-diff-bush-removal-tool
NOTE: The Z32 300zx only fits the REAR bushes only, fronts do NOT fit and are not the same.
GKTECH
240sx/Skyline Chassis solid Differential Bushings
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH solid aluminium diff bushes are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.
- CNC machined 6061-T6 aluminium and anodized black
- Available to order as front, rear or front and rear kit
Front, rear or front and rear?
Front only:
The front diff bushes are to be used when installing an S14/S15/R33/R34 diff in an S13/R32 subframe. The S14/S15/R33/R34 diffs have bushes on both the front and rear of the diff whereas the S13/R32 diffs do not. You use the original rear diff cover and then to get the front of the diff positioned correctly and then these bushes are to be installed.
NOTE: Longer front mount bolts are required when installing an S14/S15/R33/R34 diff in an S13/R32 subframe (20mm longer = 80mm thread length). Nissan OEM part number is 55424-33P00
Rear only:
Not very common but if you're running an S13/R32 diff in an R200 subframe (2 bolt cover) you will only need the rear bushes as the front of the diff is already solid mounted.
Front and rear:
All those non conversion 2 bolt cover cars. eg. S14, S15, R32 GTR, R33, R34, C33, C34 and C35
We also offer a super handy diff bush removal/installation tool, more information can be seen here - https://us.gktech.com/s14-240sx-r33-skyline-diff-bush-removal-tool
NOTE: The Z32 300zx only fits the REAR bushes only, fronts do NOT fit and are not the same.
Choose options
FAQs
What's the difference between solid and polyurethane diff bushes?Solid is as the name suggests, solid. Polyurethane (80sHA in this instance) is a hard material but it does have some give resulting in less transfer of noise. Generally speaking we would say that if you drive your car hard the polyurethane bushes are the way to go. If your car is track dedicated, solid is the way to go.
What's the advantage of using the GKTech solid diff bushes?
Being solid they ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.
What modifications are required, is this hard to fit?
No modifications are required, simply install the front bushes by hand into the diff, and then press the rear bushes into the subframe.
Is there anything else needed for installation?
No, you can use your OEM nuts and bolts, in terms of the bushes they will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, if the subframe is out the job so take around 30 minutes to install the bushes and diff.
Do these cause much vibration/noise in the cabin?
Not really. Obviously, anything solid or more rigid is going to cause an increase in noise and vibration. However, I'd hardly say that it's noticeable. Chances are if you're installing these you've already got coilovers, your car is lowered, you've got an aftermarket exhaust etc.
Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
VEHICLE COMPATIBILITY
Nissan
C33 LAURELC34 LAUREL
C35 LAUREL
CEFIRO A31
R32 SKYLINE GTR
R32 SKYLINE GTS-T
R32 SKYLINE GTS4
R33 SKYLINE GTR
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R34 SKYLINE GT
R34 SKYLINE GT-T
R34 SKYLINE GTR
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Z32 300ZX
