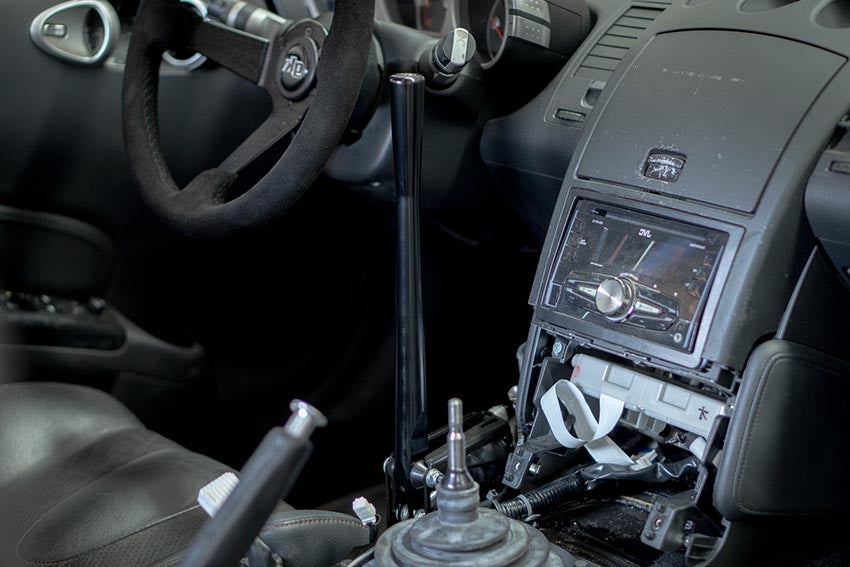

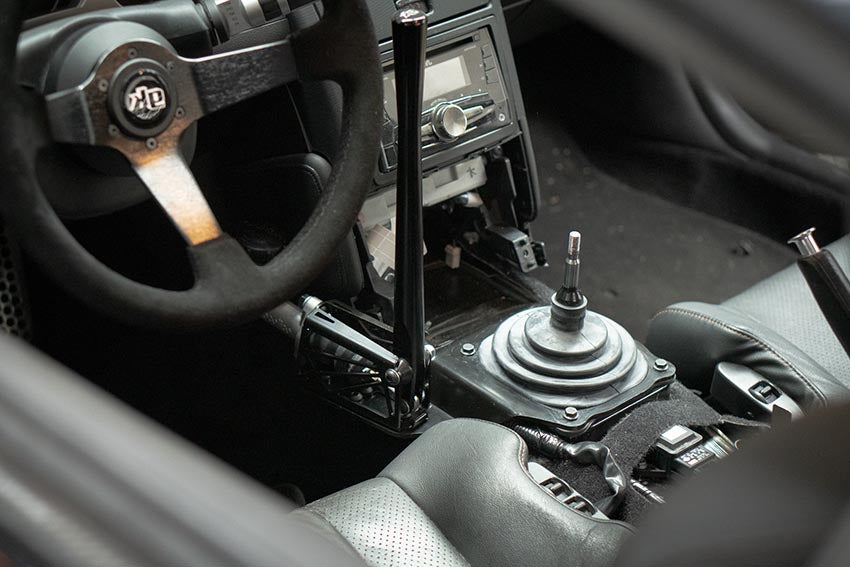

When installing a hydraulic e-brake in your car, you'd typically have to drill holes or weld a bracket in place. We understand that not everyone wants to do that, so we've made these bolt in brackets. The brackets bolt to the stock transmission shifter hole and allows you to fit our hydraulic e-brake assembly without modifications to the transmission tunnel.
- 100% direct fit with no modifications required to the transmission tunnel
- Available for either center console or side mount LHD and RHD variants.
- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity
- Includes 4x replacement M6x20mm bolts
Inside mount = mounts inside/within the center console itself, this will require trimming beneath the AC unit when used on both the left and right-hand side.
Outside mount = mounts outside the center console itself, no modifications required to the trim when used on both the left and right-hand side.
Please refer to product images upon ordering.
NOTE: Console version will require some trimming under the center console and require you to cut a hole for the lever.
For the 350z AT Tunnel - INSIDE Trim Mount the transmission tunnel will require one tab to be flattened & some minor sound deadening removal and also only work with the LOW style e-brake seen HERE
We cannot confirm fitment of the AT Tunnel mounts to V35/G35, only Z33. Please contact sales@gktech.com.au if you do have an automatic V35/G35.
NOTE #3 Outside mount when used on the drivers side may have contact with the OEM seat when the seating position is close to the steering wheel, the OEM seat can still be used but can cause damage with prolonged use.
GKTECH
Z33 350Z vehicle specific e-brake mount
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.When installing a hydraulic e-brake in your car, you'd typically have to drill holes or weld a bracket in place. We understand that not everyone wants to do that, so we've made these bolt in brackets. The brackets bolt to the stock transmission shifter hole and allows you to fit our hydraulic e-brake assembly without modifications to the transmission tunnel.
- 100% direct fit with no modifications required to the transmission tunnel
- Available for either center console or side mount LHD and RHD variants.
- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity
- Includes 4x replacement M6x20mm bolts
Inside mount = mounts inside/within the center console itself, this will require trimming beneath the AC unit when used on both the left and right-hand side.
Outside mount = mounts outside the center console itself, no modifications required to the trim when used on both the left and right-hand side.
Please refer to product images upon ordering.
NOTE: Console version will require some trimming under the center console and require you to cut a hole for the lever.
For the 350z AT Tunnel - INSIDE Trim Mount the transmission tunnel will require one tab to be flattened & some minor sound deadening removal and also only work with the LOW style e-brake seen HERE
We cannot confirm fitment of the AT Tunnel mounts to V35/G35, only Z33. Please contact sales@gktech.com.au if you do have an automatic V35/G35.
NOTE #3 Outside mount when used on the drivers side may have contact with the OEM seat when the seating position is close to the steering wheel, the OEM seat can still be used but can cause damage with prolonged use.
Choose options
FAQs
What does the AT Tunnel reference mean?The automatic transmission tunnel is different to the manual transmission tunnel.
So if your shell was originally an automatic, you would need to use the AT Tunnel mount, every other mount listed is to suit the manual transmissions.
Will this work with "insert brand of hydraulic e-brake here"?
No, this bracket is designed specifically for our hydraulic e-brake assembly.
Are any permanent modifications required to fit this bracket?
The side mount brackets can be installed with zero modifications. The console mount option will require trimming of the center console and cutting a hole for the lever (obviously)
VEHICLE COMPATIBILITY
Nissan
Z33 350Z
