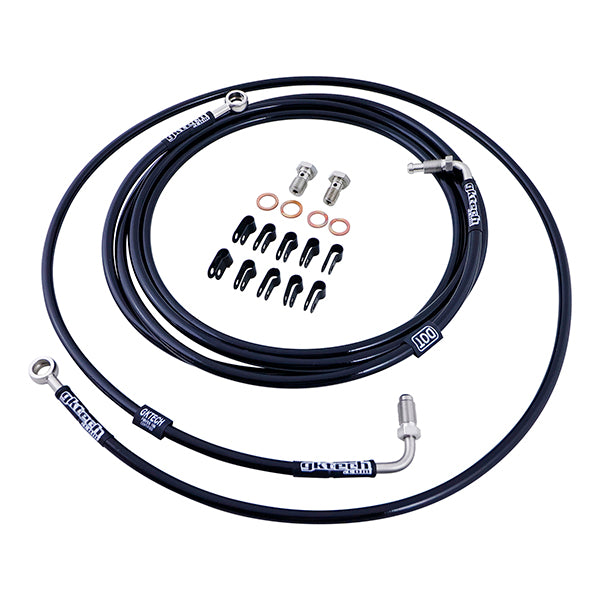

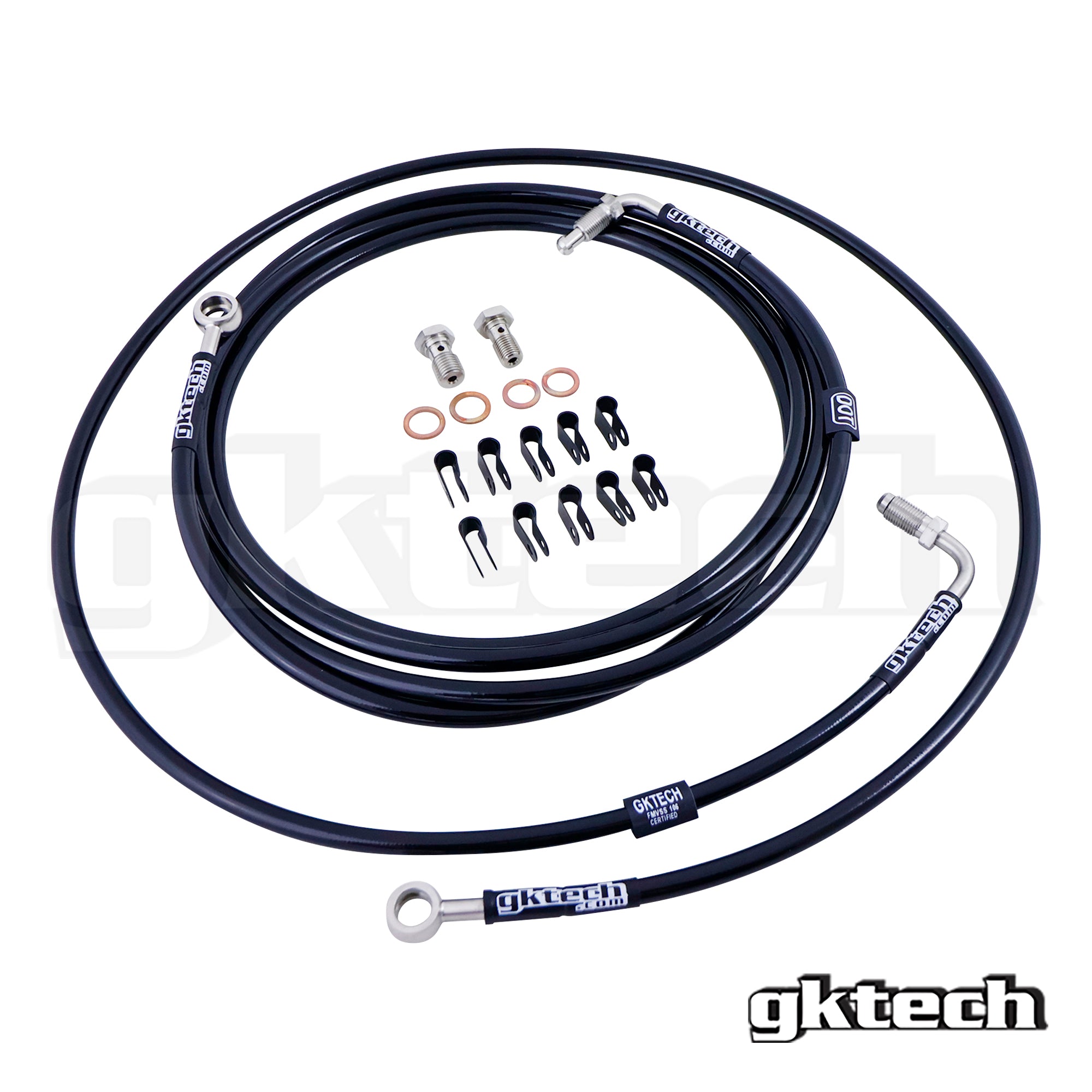

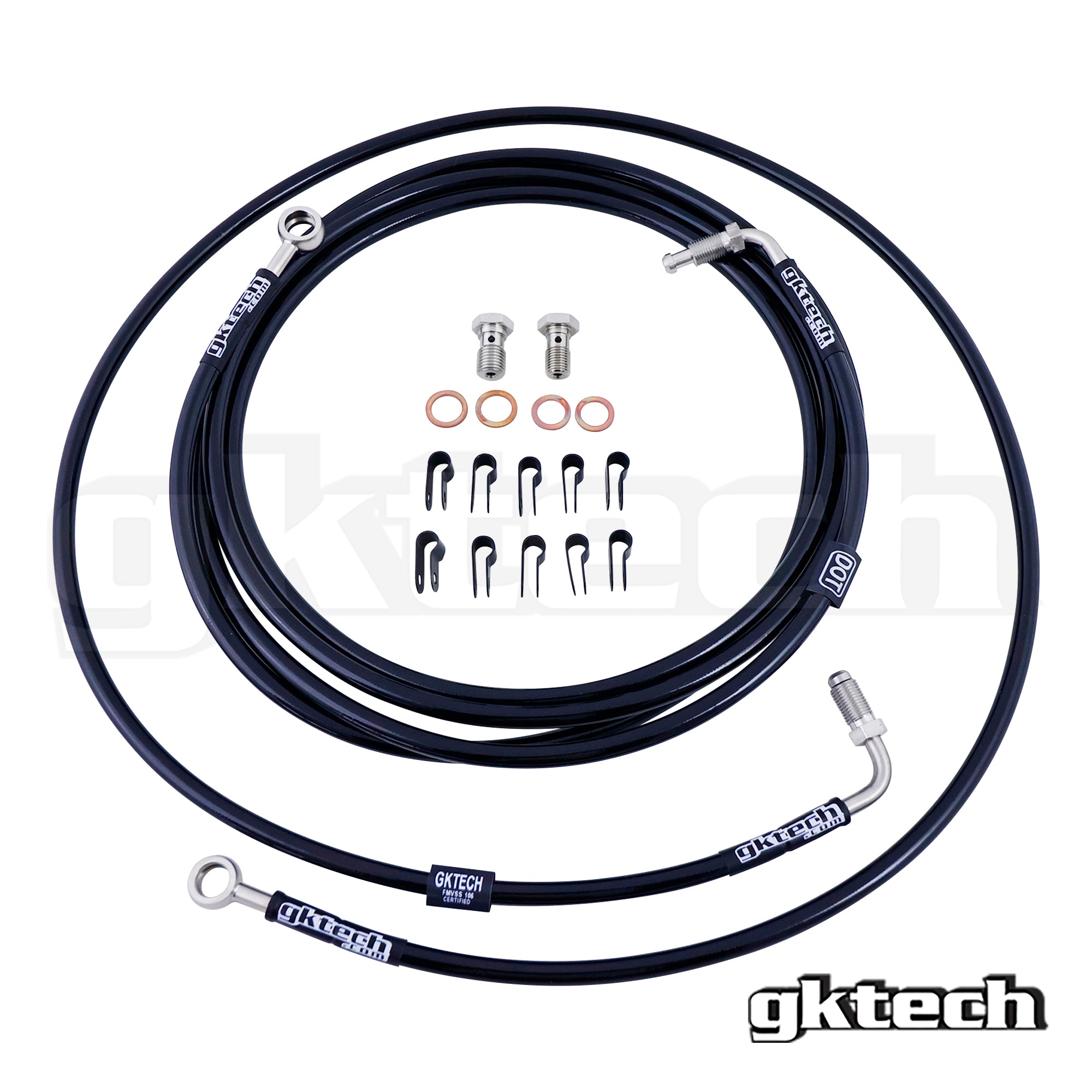

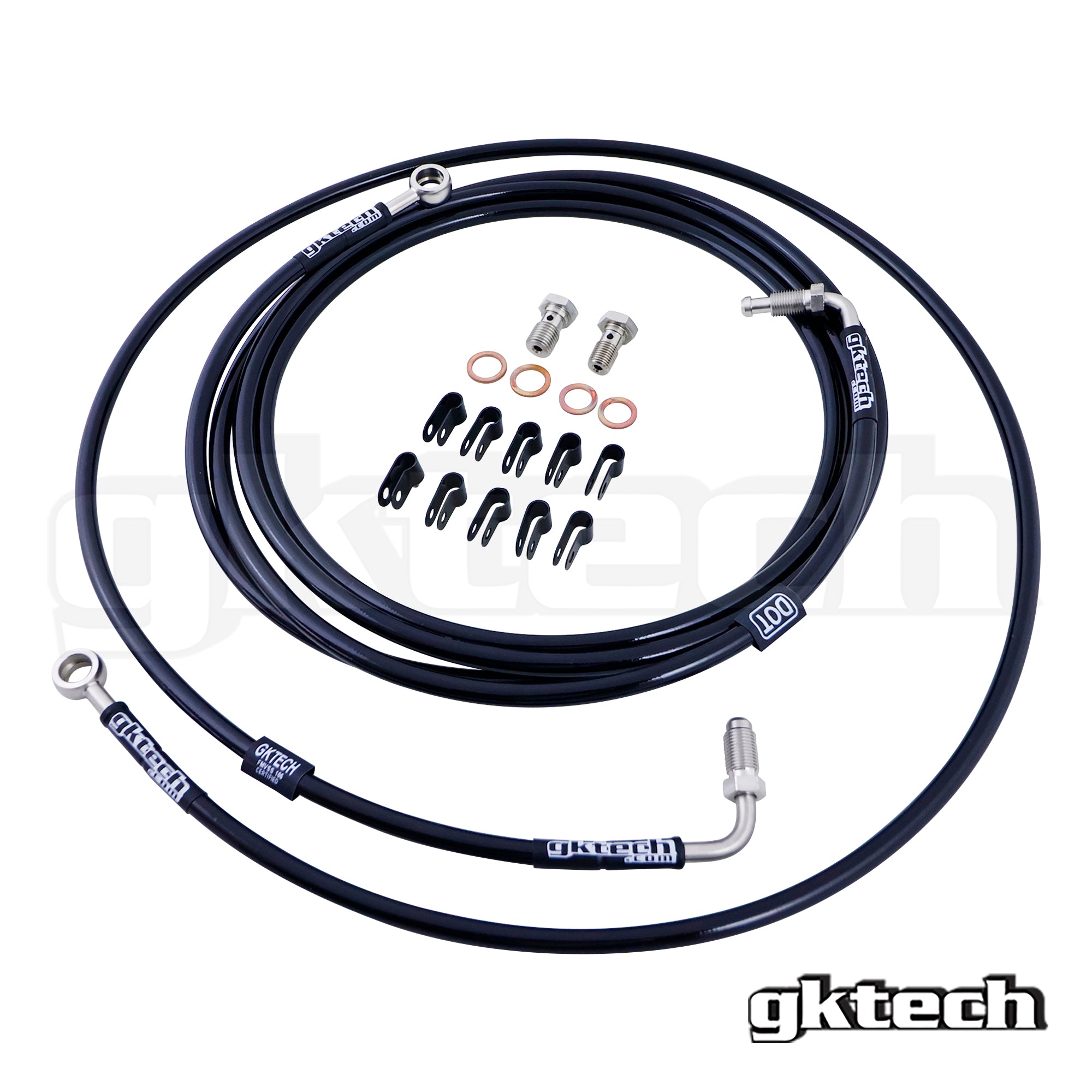

The GKTECH Toyota JZX In-Line Hydraulic E-Brake braided brake line kit is designed to be used with your existing brake calipers and doesn't require any cutting or drilling as it passes through OEM firewall grommets!
These lines are to suit a master cylinder located under the radio, with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that we sell.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines DOT compliant in the USA and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degF to 245degF temperature tests
- 24 hour salt corrosion resistance test
To suit RHD ONLY & the OEM ABS Block seen here;
NOTE #1: ABS will no longer work (requires removal of ABS fuses/relays)
GKTECH
Toyota JZX In-Line Hydraulic E-Brake Lines
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Order and get reward points
Earn 5% back in reward points
The GKTECH Toyota JZX In-Line Hydraulic E-Brake braided brake line kit is designed to be used with your existing brake calipers and doesn't require any cutting or drilling as it passes through OEM firewall grommets!
These lines are to suit a master cylinder located under the radio, with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that we sell.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines DOT compliant in the USA and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degF to 245degF temperature tests
- 24 hour salt corrosion resistance test
To suit RHD ONLY & the OEM ABS Block seen here;
NOTE #1: ABS will no longer work (requires removal of ABS fuses/relays)
WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov
VEHICLE COMPATIBILITY
Toyota
JZX100JZX90
