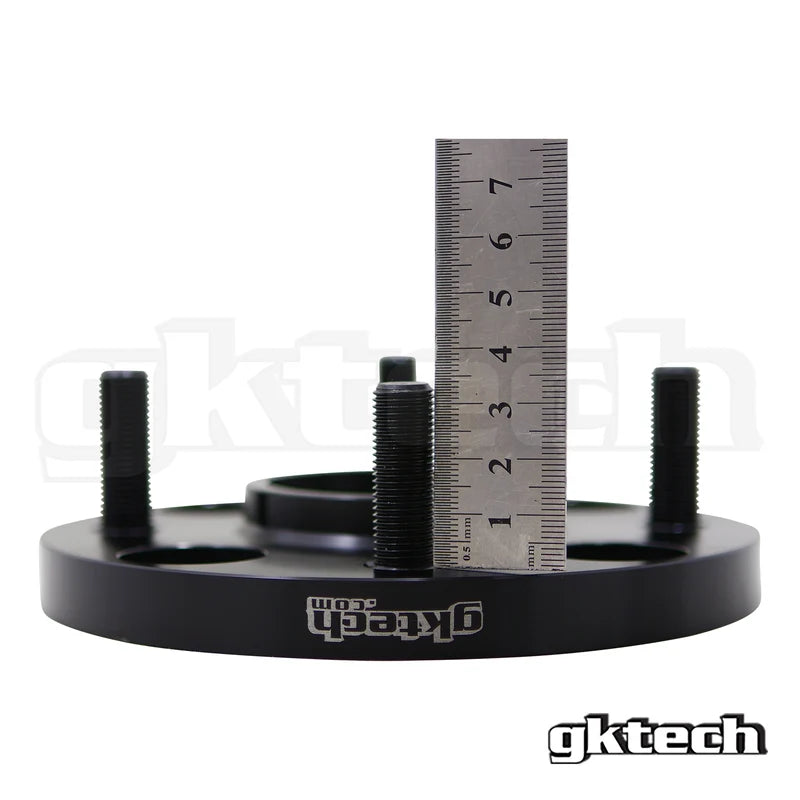

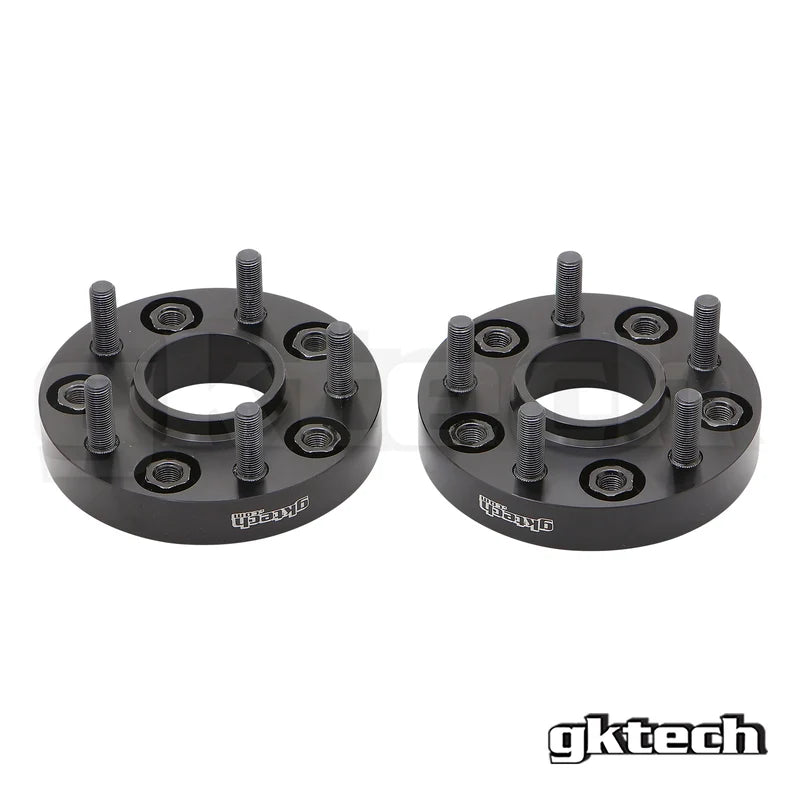

The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!
The wheel spacers are hub centric to suit Toyotas 60.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs, which you have the option of either standard length studs or extended wheel studs.
Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
NOTE: Sold as a PAIR
NOTE#2: Spacers with a 73.00mm wheel bore will NOT fit with OEM Toyota wheels.
| Sizes (width) | PCD | Centre bore | Wheel Bore | Spacer O.D | Standard stud length | Extended stud length | Stud thread |
|---|---|---|---|---|---|---|---|
| 15mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 20mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 25mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 30mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 40mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 50mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
GKTECH
Toyota 5x114.3 Hub Centric Wheel Spacers
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!
The wheel spacers are hub centric to suit Toyotas 60.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs, which you have the option of either standard length studs or extended wheel studs.
Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
NOTE: Sold as a PAIR
NOTE#2: Spacers with a 73.00mm wheel bore will NOT fit with OEM Toyota wheels.
| Sizes (width) | PCD | Centre bore | Wheel Bore | Spacer O.D | Standard stud length | Extended stud length | Stud thread |
|---|---|---|---|---|---|---|---|
| 15mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 20mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 25mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 30mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 40mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
| 50mm | 5x114.3 | 60.1mm | 60.1mm | 150mm | 35mm | 60mm | M12 x 1.5 thread |
Choose options
FAQs
Should I get extended studs or standard studs?If you're not planning to use slip-on spacers on top of your bolt on spacers, we recommend going with the "standard studs".
Additionally, if you have capped wheel nuts (those with a closed end), you will need the standard length studs.
If you're still uncertain, you could opt for the extended studded spacers and trim the studs to the your desired length.
What torque should the nuts be set to?
The wheel nuts supplied with our wheel spacers are designed to be torqued down to 98-118nm (72-87ft-lbs). For the wheel nuts, please refer to the factory service manual as they need to be torqued down to the OEM torque spec.
Are these wheel spacers hub centric?
Yes, these spacers are hub centric to suit Toyotas specifically.
Are these wheel spacers strong?
Yes, these wheel spacers are very strong. The spacers themselves are manufactured from T6-6061 Aluminium and we use grade 10.9 fittings. That said, please note that these are for off road use and are not intended for use on public roads.
Do you have extended wheel studs available on their own?
No, we do not have extended wheel studs available for Toyotas.
