S13 240sx Drum e-brake cable conversion plate
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.S13 240sx Drum e-brake cable conversion plate
Albuquerque NM
8524 Indian School Rd NE
Albuquerque NM 87112
United States
Free Shipping on orders over $250
Checking Dispatch Times...
Order and get 5% back in reward points
That's 1370 for this item
When upgrading your S13 240sx rear brakes to Nissan 2 pot caliper and rear drum e-brake you will find the e-brake cables do not exactly line up to the S13 240sx chassis and e-brake lever.

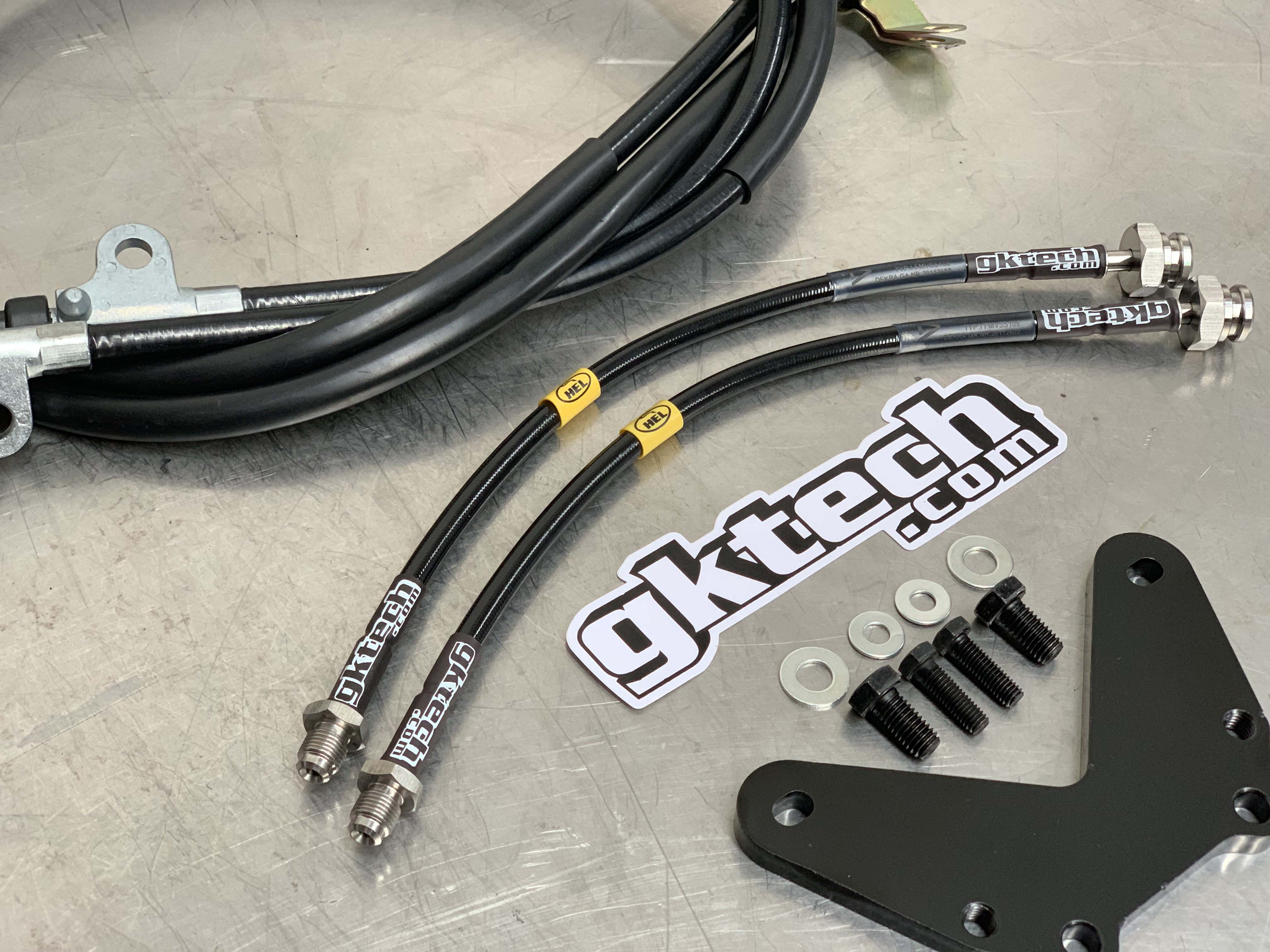

The GKTECH cable conversion plate is made from laser cut 8mm thick steel and allows you to easily adapt R33 2 door e-brake cables to your S13 240sx chassis and e-brake lever.
We allow these lines to be located via the OEM e-brake pin which is cast into the cable bracket into the bracket and also have incorporated an M8 thread in the plate to hold the cables down rather than the M6 thread used from OEM.
This means you don’t have to waste time around with loose nuts on the top and fidgeting around with spanners and tools.
While you are doing this conversion it would be worth upgrading the brake lines also. You can choose from either just the rear lines if you have the front sorted or a full kit.
Our full brake line kit is specifically made for an S13/240sx that is doing this conversion and using these brakes.
The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines DOT compliant in the USA and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degF to 245degF temperature tests
- 24 hour salt corrosion resistance test
NOTE: MUST be used in conjunction with the R33 2 door e-brake cables. Will NOT work with other cables.
FAQs
Can't my original lines bolt up?No, they do not. When doing a brake conversion that requires drum brakes you will find the cables do not match up to your S13 240sx OEM lever and front cable. This means you need our conversion plate that enables you to keep your OEM lever and front cable while running the 240SX Drum E-Brake Conversion cables (R33 Cables).
Will this work with any other cables?
No sir! This plate has been designed to only use the 240SX Drum E-Brake Conversion cables (R33 Cables), as mentioned above.
Why use an M8 hole to locate the cables instead of the M6 provided by the factory?
We noticed the OEM e-brake cable has the allowance for a larger bolt to be used to secure the cable, why not use something that is already there to make a better/stronger product!
Is 8mm too thick and will this cause any issues?
There are no clearance issues and considering people are constantly pulling the e-brake whilst drifting we felt the need to overcompensate an important connecting part.
Does this come with everything I need?
Yes, this kit comes with all the accessories to bolt directly up.
What if I have Z32 rear brakes fitted, which cable do I use?
This listing is for the use of an R33 cable which can bolt up to your Z32 rear brakes and the adapter plate also in this listing. You do not need to purchase the Z32 cable in our other listing, that is only for a direct OEM replacement.
VEHICLE COMPATIBILITY
Nissan
S13 KA24 240SXS13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov

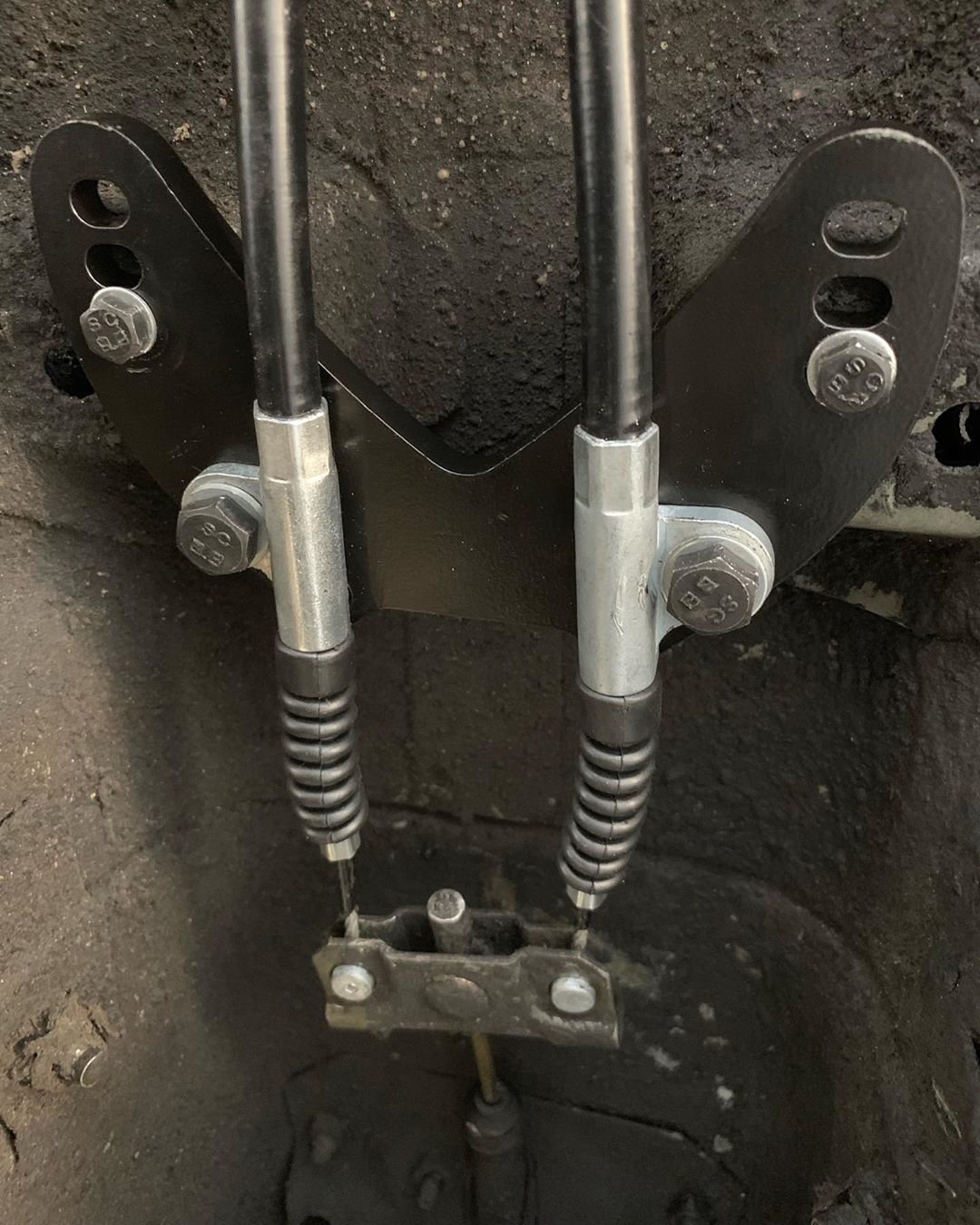

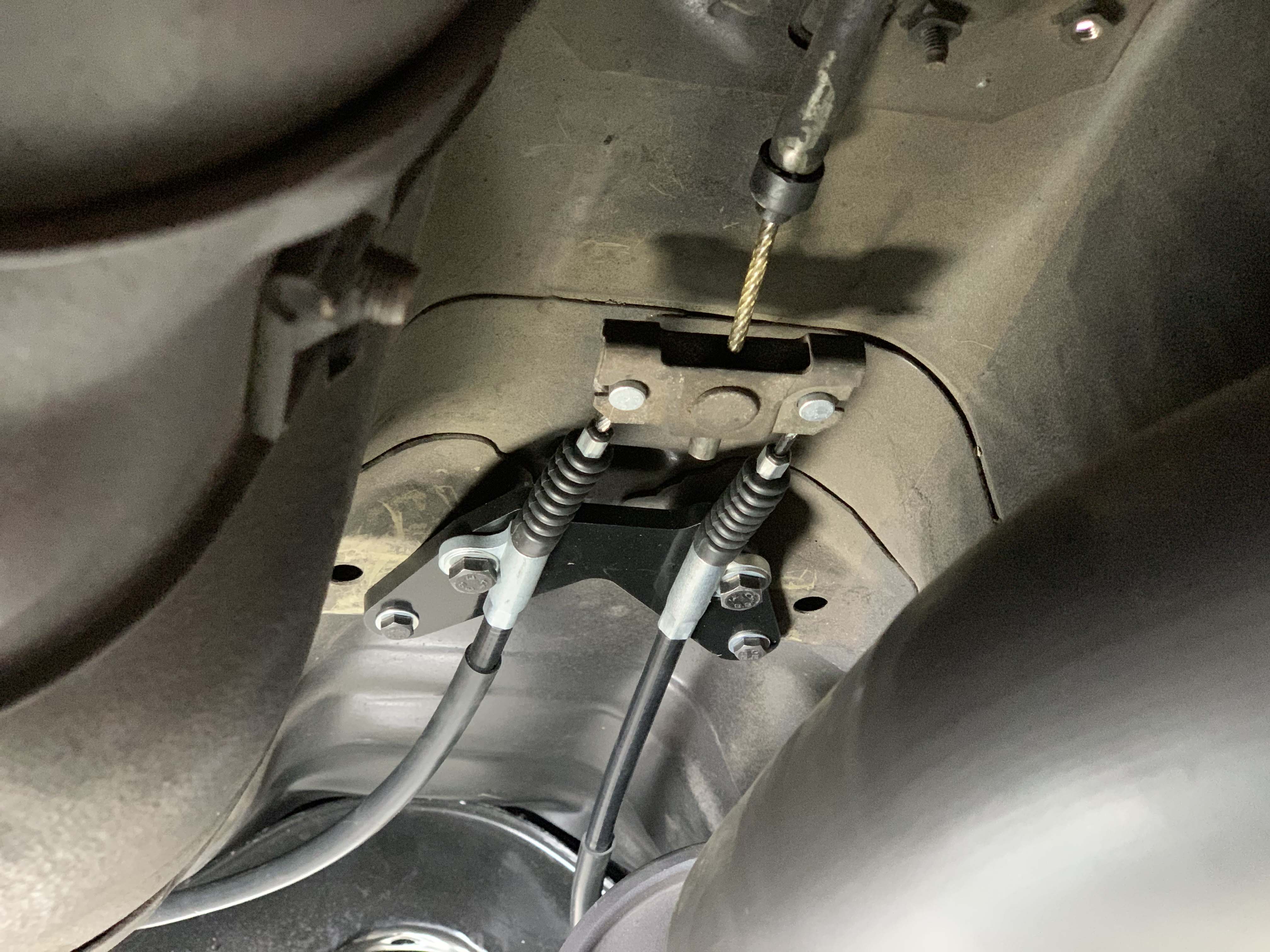

Customer Photos
Customer Reviews
Only issues I ran into was 30 year old Nissan rust getting in my eyes during install, but that isn't really something I can blame GK for.
Lines up, bolts on, does exactly what it says on the tin. Plenty of clearance above the bracket for cables if that's your speed - might move them in future but I haven't had any issues running them below as of yet. Drum brake works fine, and I love the adjustment holes for depending on the condition of your handbrake cables.
I was a die hard fan of al gktech but after constant let downs I recommend a different brand. The customer service is horrible. They do not believe what your right even if you have pictures. This bracket has clearance issues. I tried on my s13 hatch and coupe and the bracket needs to vent to work. Don't believe me? Check YouTube. DO NOT BUY unless you can cut and reweld it. Or you bend the mount point in the car.
We acknowledge that we supplied the wrong bracket in error and we quickly rectified the issue by sending a replacement at our cost. We appreciate your loyalty to our brand and hope you will give us another chance in the future.
Excellent fit and finish. Paired with GK's Z32 2+2 cables into an OEM backing plate and drum hardware on an S13 and couldn't be happier. Note that they DID fix the driveshaft clearance issue previously apparent. Perfectly bent to avoid the driveshaft now. Note there are 3 separate mounting holes on the chassis side, with new cables and an unstretched handle cable, I used the closest hole (stretching the line the least). I can't imagine using the other two unless the rear cables are stretched af, which is good to know they're there in case that happens. A+ part.
When installed my drives haft hit the cables because of my raised subframe luckily they designed it so the cables can run up top and make enough clearance great product would recommend to everyone
Pretty straight forward. Everything had gone smooth so far. My passenger rear brake hardline was seized but it's out now. I only have to install the driver rear drum and rotor. I'm unaware if I need different brake master cylinder lines as I also have the 300ZX brake booster😁
