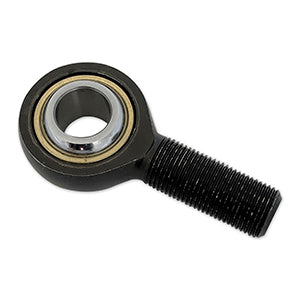

Replacement PCMR12TS heim
Replacement PCMR12TS heim
Replacement PCMR12TS heim

Replacement PCMR12TS heim.

Used in the following GKTECH products:

R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)

Sold individually

PCMR12TS

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
1.7500 in 44.4500 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF RH 3/4 - 16 UNF RH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.7500 in 44.4500 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined

GKTECH

Replacement PCMR12TS heim

15% OFF - Applied ✅
PLUS 5% back in reward points
Sale price$17.85 USD Regular price$21.00 USD
Save 15%
SKU: PCMR12TS
In stock

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Fast Dispatch
Checking Dispatch Times... * We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Free Shipping + Express Post options available Free USA wide shipping on orders over $230 * We offer FREE STANDARD SHIPPING* within the USA when you purchase $230 or more in a single order.
Store Pickup Pickup available at Albuquerque NM
Order and get reward points Earn 5% back in reward points, that is $0.89 worth!

Replacement PCMR12TS heim.

Used in the following GKTECH products:

R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)

Sold individually

PCMR12TS

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
1.7500 in 44.4500 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF RH 3/4 - 16 UNF RH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.7500 in 44.4500 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined

VEHICLE COMPATIBILITY

Nissan

R32 SKYLINE GTR
R32 SKYLINE GTS-T
Z32 300ZX
