The sway bar fits both the R32 and R33/R34, however only R32 levers are currently available. R33/R34 levers are currently in development!
One of the biggest issues when looking for additional steering lock is clearance and one of the things that gets in the way is the swaybar.

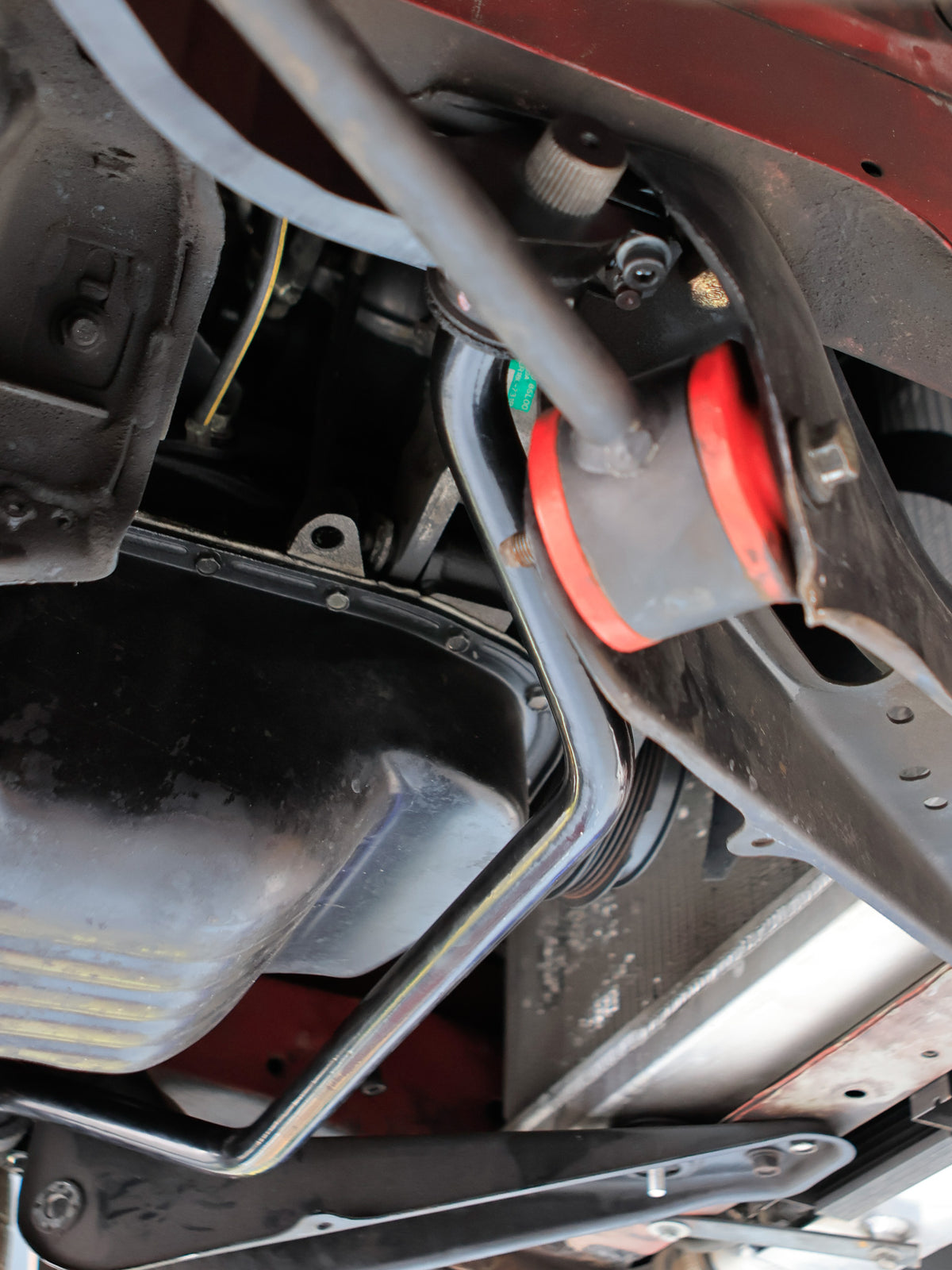

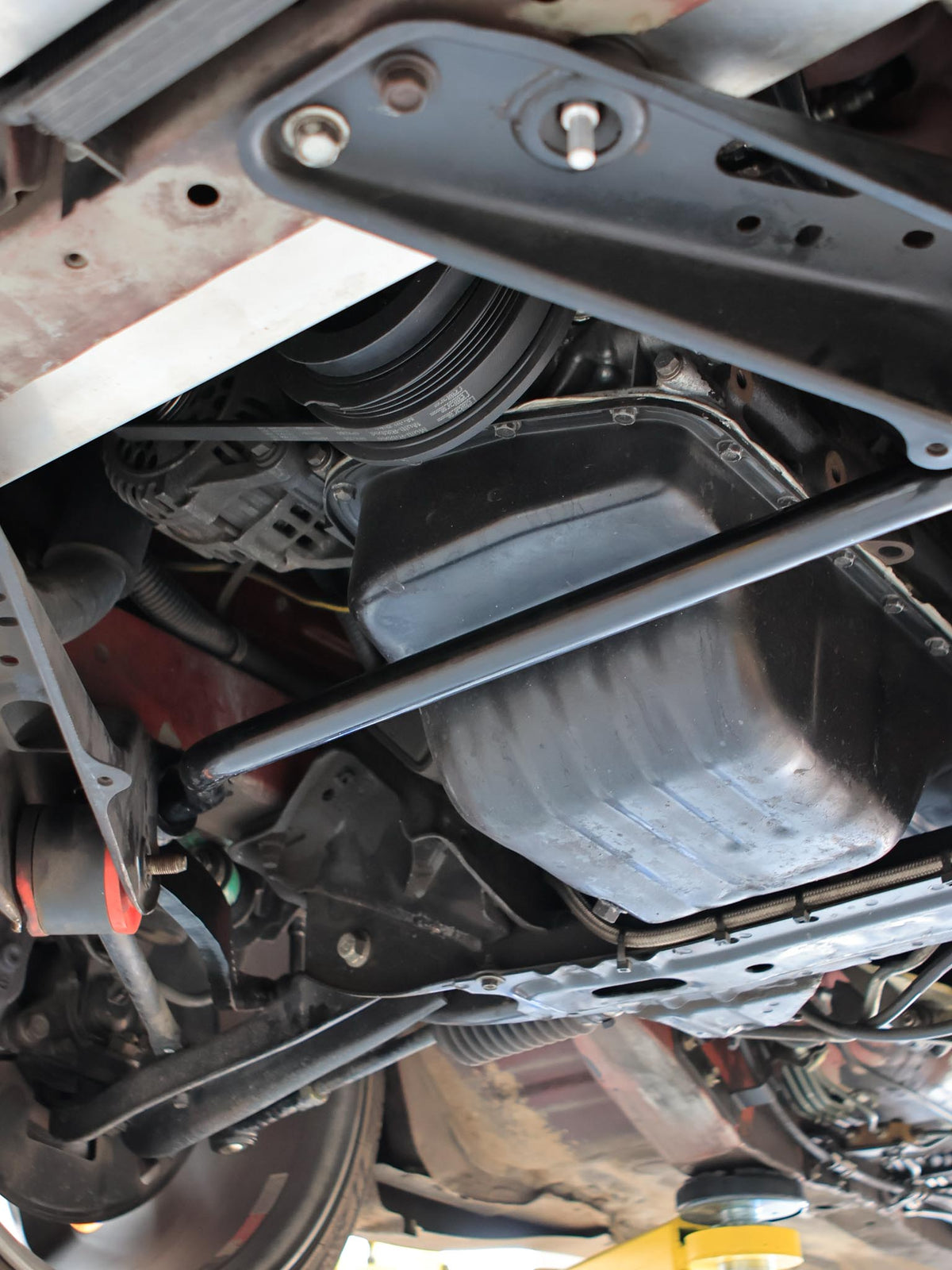

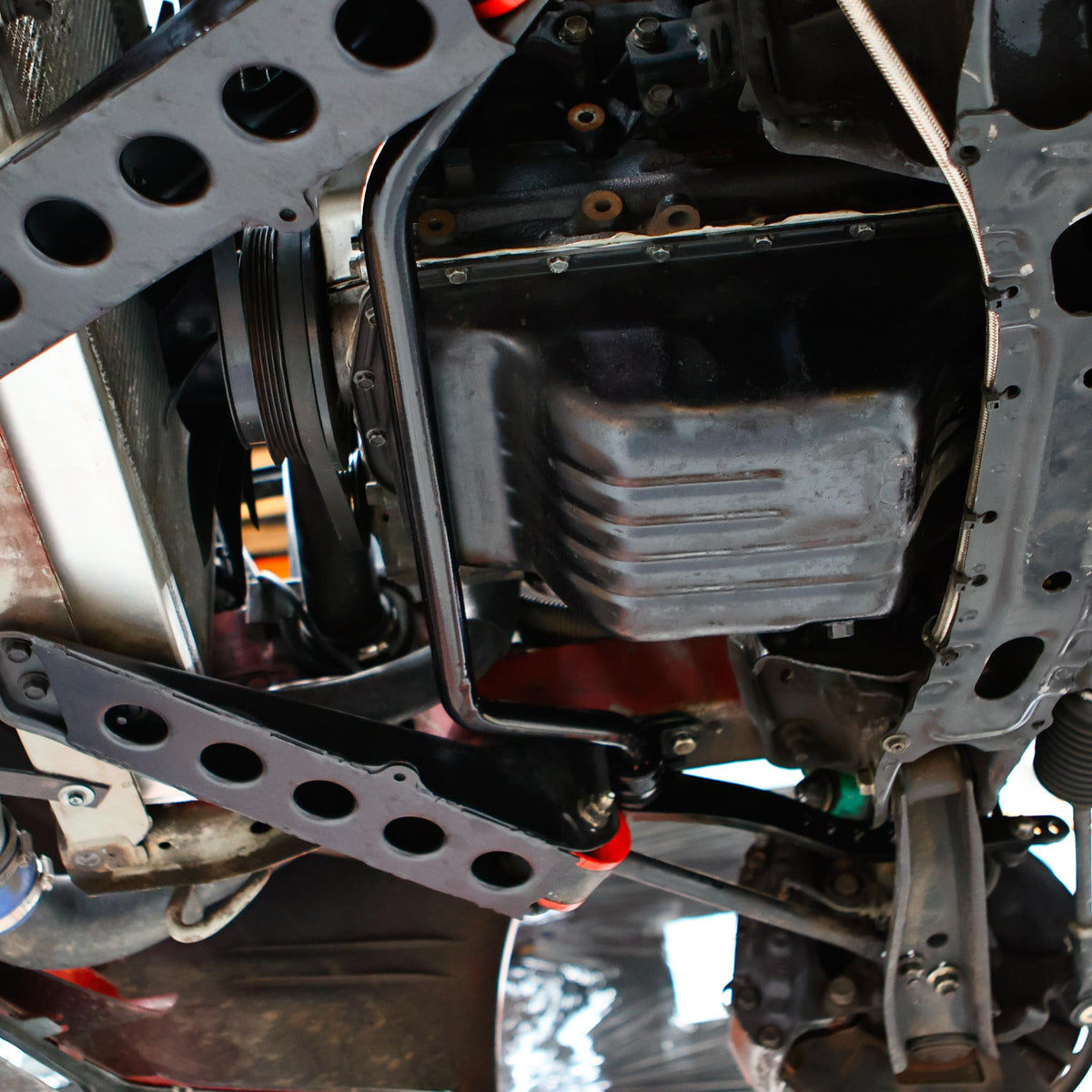

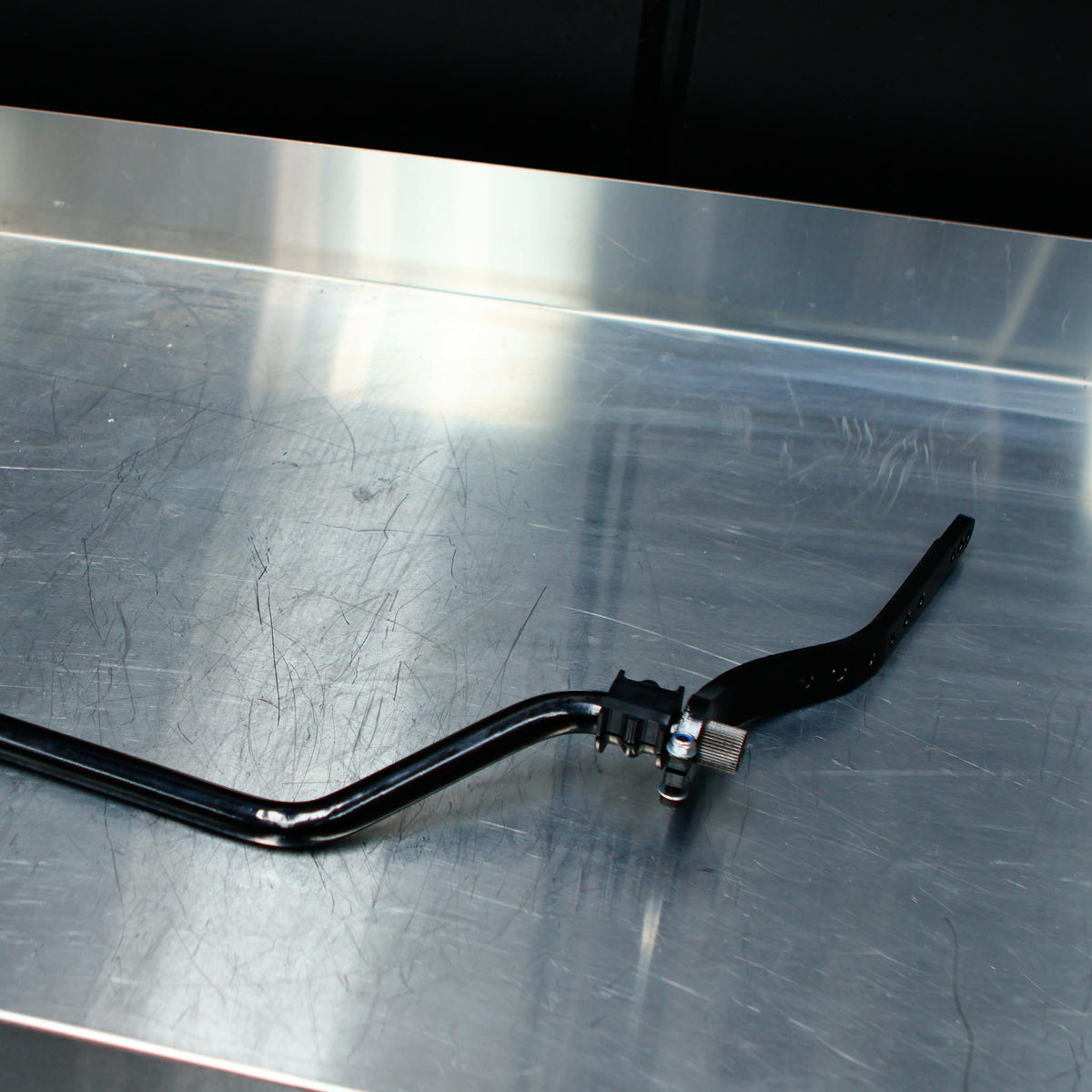

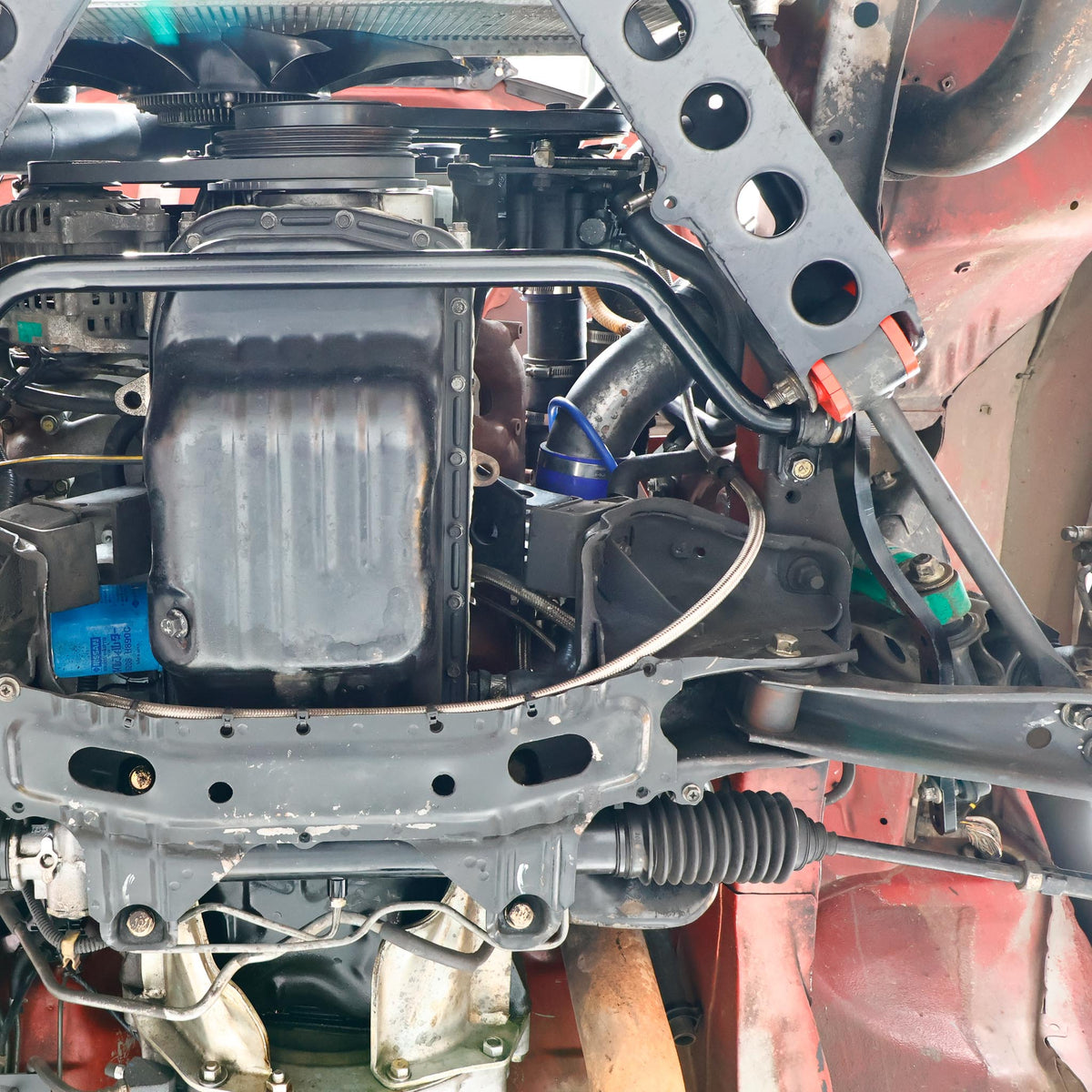

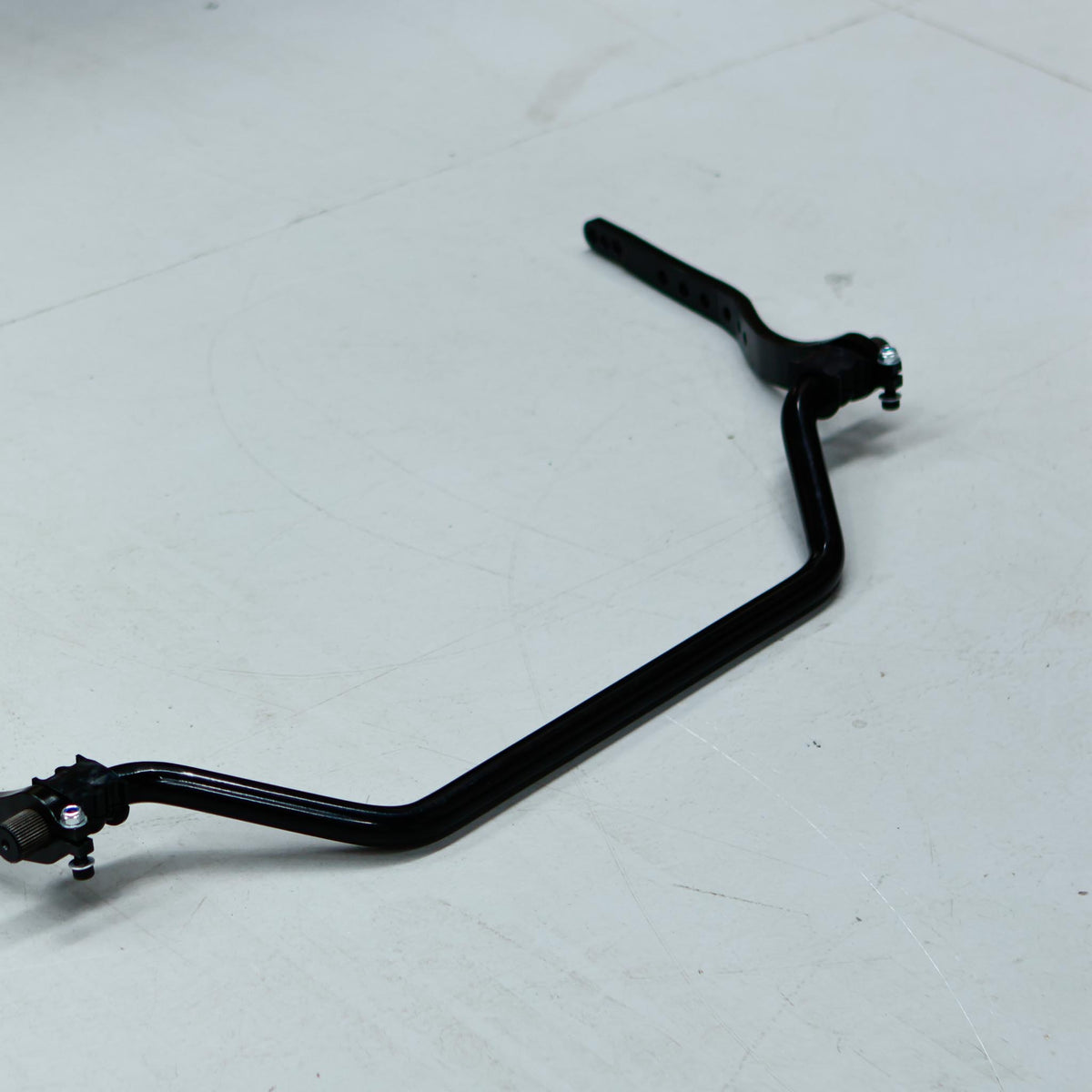

We have developed an adjustable swaybar which not only has lots of clearance due to it's unique 3 piece design in the wheel well but as the main rod in the engine bay can be rotated up or down it has amazing clearance for the long RB engine, or even if you have done an engine swap in your R-chassis, ie 2JZ, LS AND VQ35/37 motors etc all clear with ease.
Our swaybar is also suited not only for drifting but also circuit/grip racing!

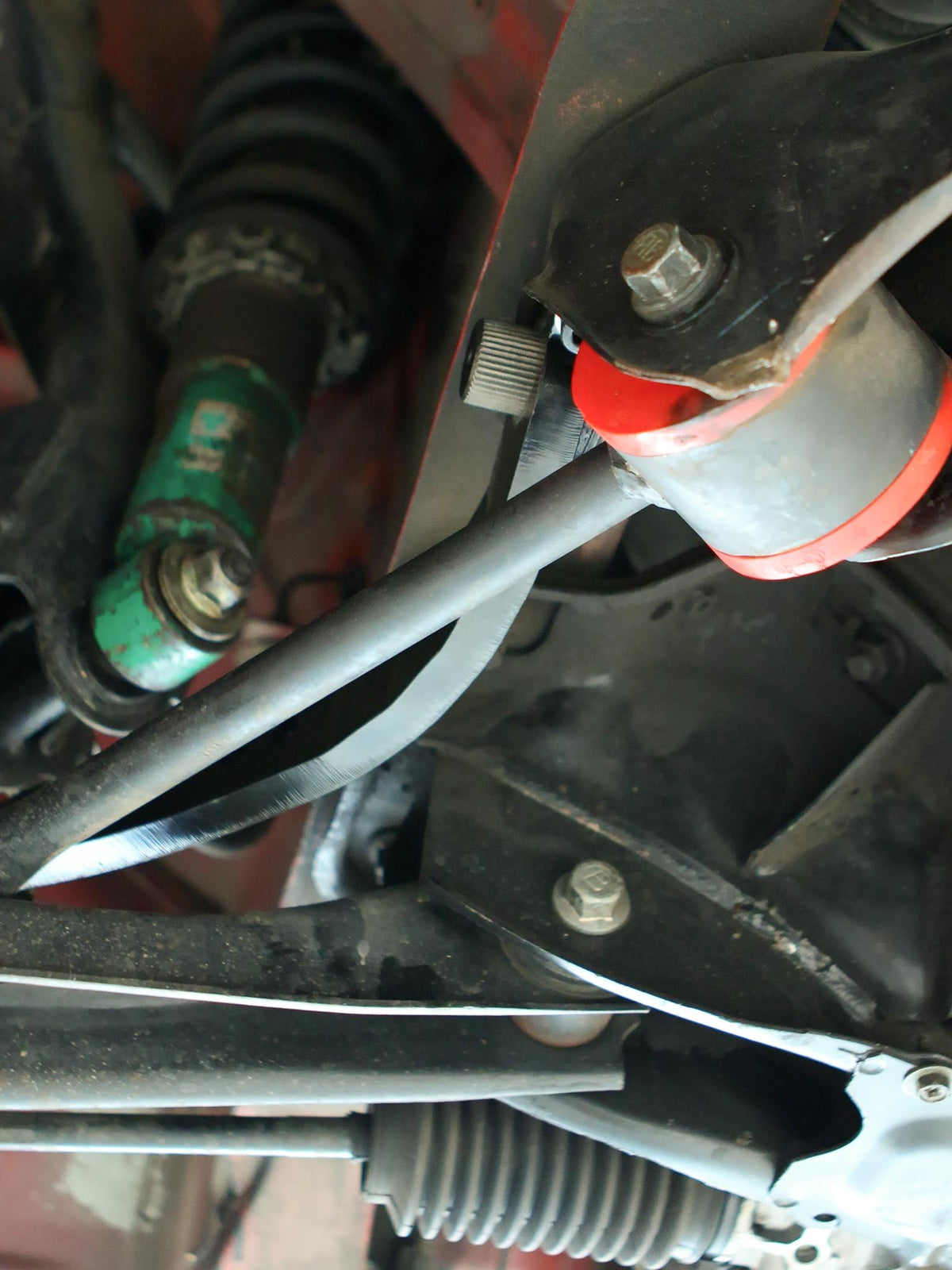

- Will support 65+ degrees of steering lock (your tyre will hit the chassis rail before the swaybar lever)
- CAD designed and FEA tested
- Manufactured from spring steel (50CrV4) with a 25.5mm OD.
- Stiffness of 1087 Lbf/in / 192 N/mm, with motion ratio of 0.53 and a roll stiffness of 576 Lbf/in / 101.8 N/mm.

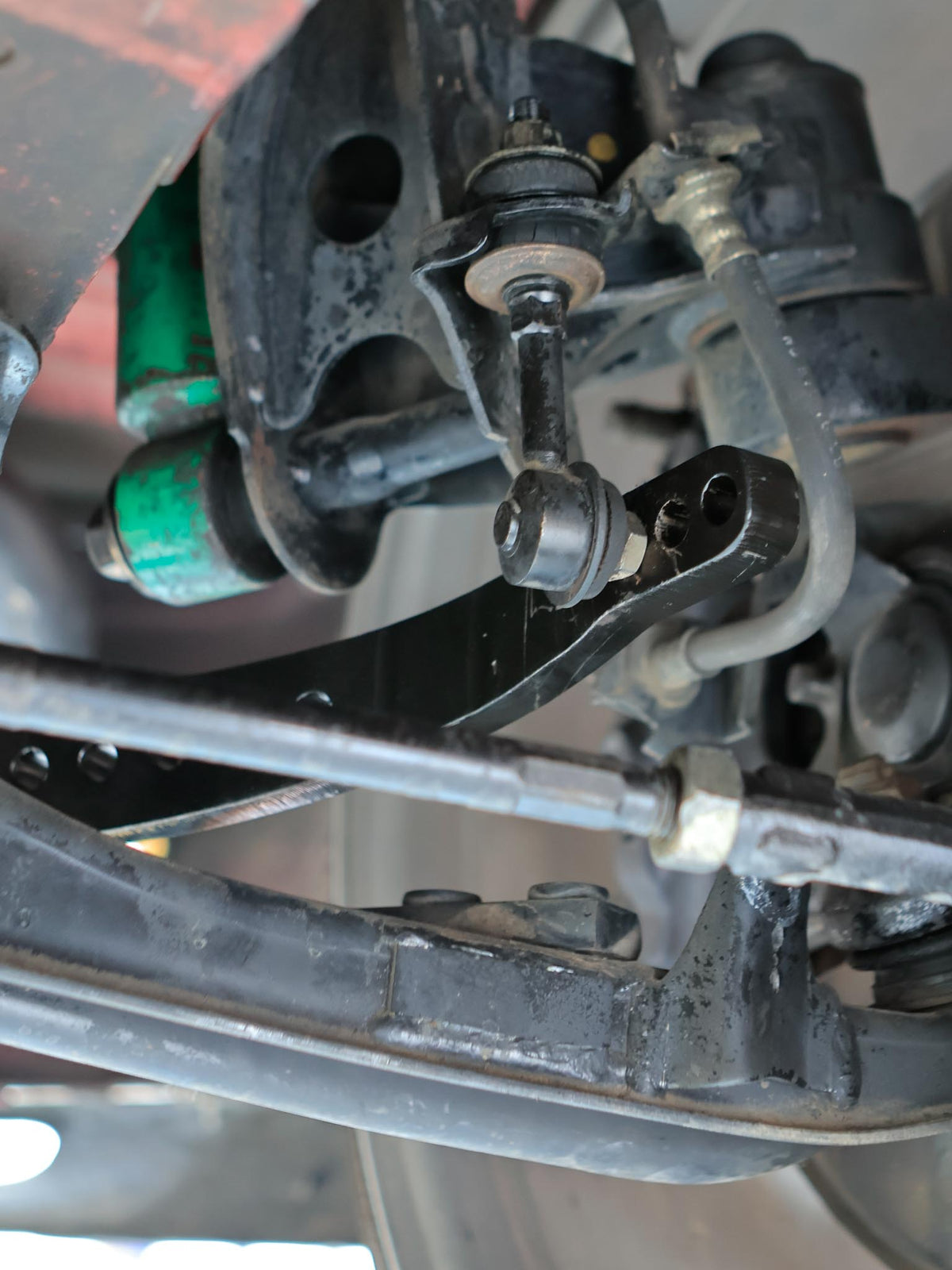

- Adjustable in stiffness with 3 holes that increase/decrease the length of the lever arm, which causes the force applied on the torsion bar to be increased/decreased.
- Includes new polyurethane D bushes. Does NOT include swaybar end links however the OEM style can be used and we do sell a replacement set.
The swaybar does fit both the R32 and R33/R34, however only the R32 levers are available. We do have R33/R34 levers in development. For the time being though the OEM swaybar U brackets for the R33/R34 can be seen HERE, OEM part number #54614-65F00
The R-Chassis swaybar was designed alongside the S-Chassis swaybar, if you want more technical information, product benefits and a look into the design process on our swaybars in general, check our our BLOG POST
NOTE: Will not fit on S-Chassis, S-Chassis specific swaybar HERE
GKTECH

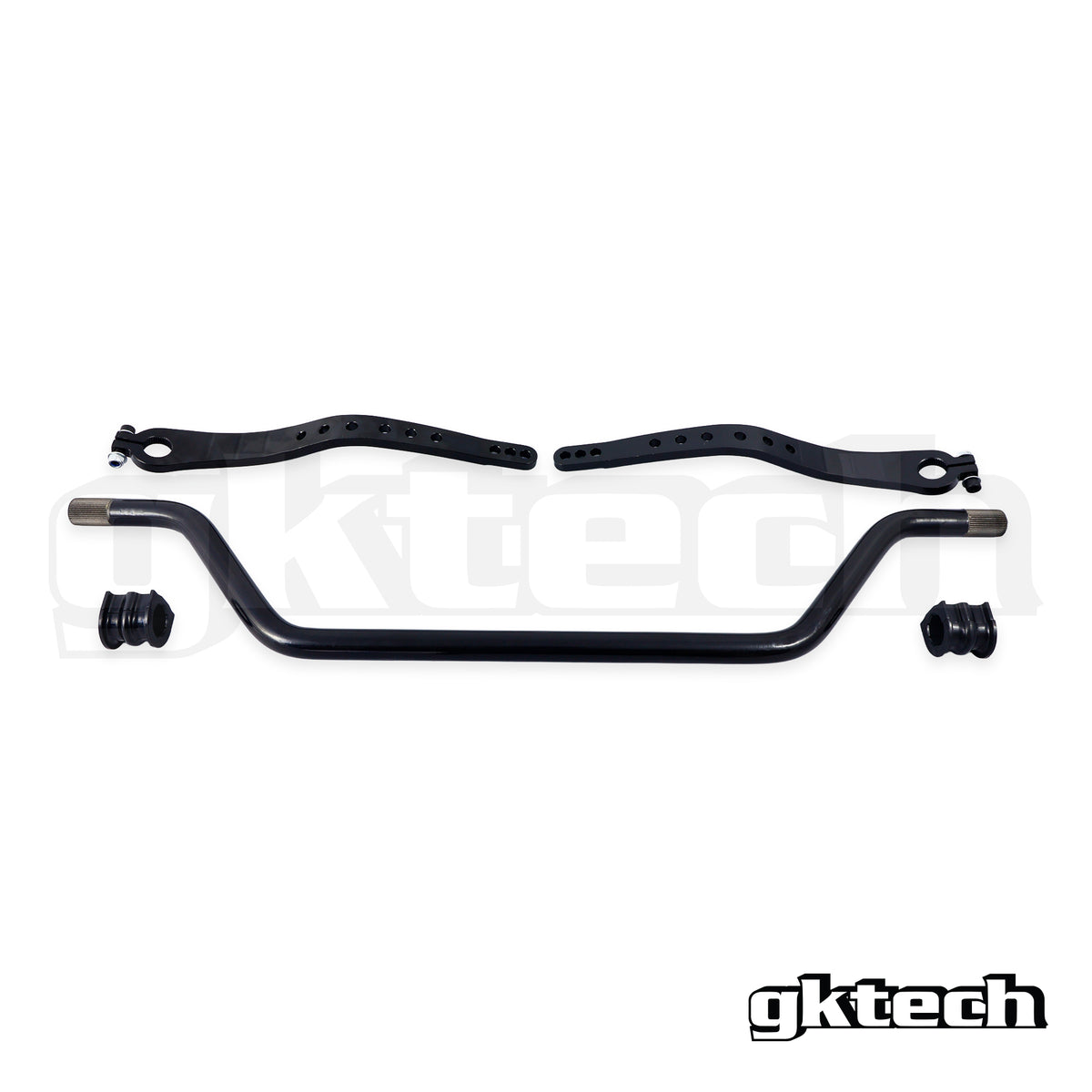

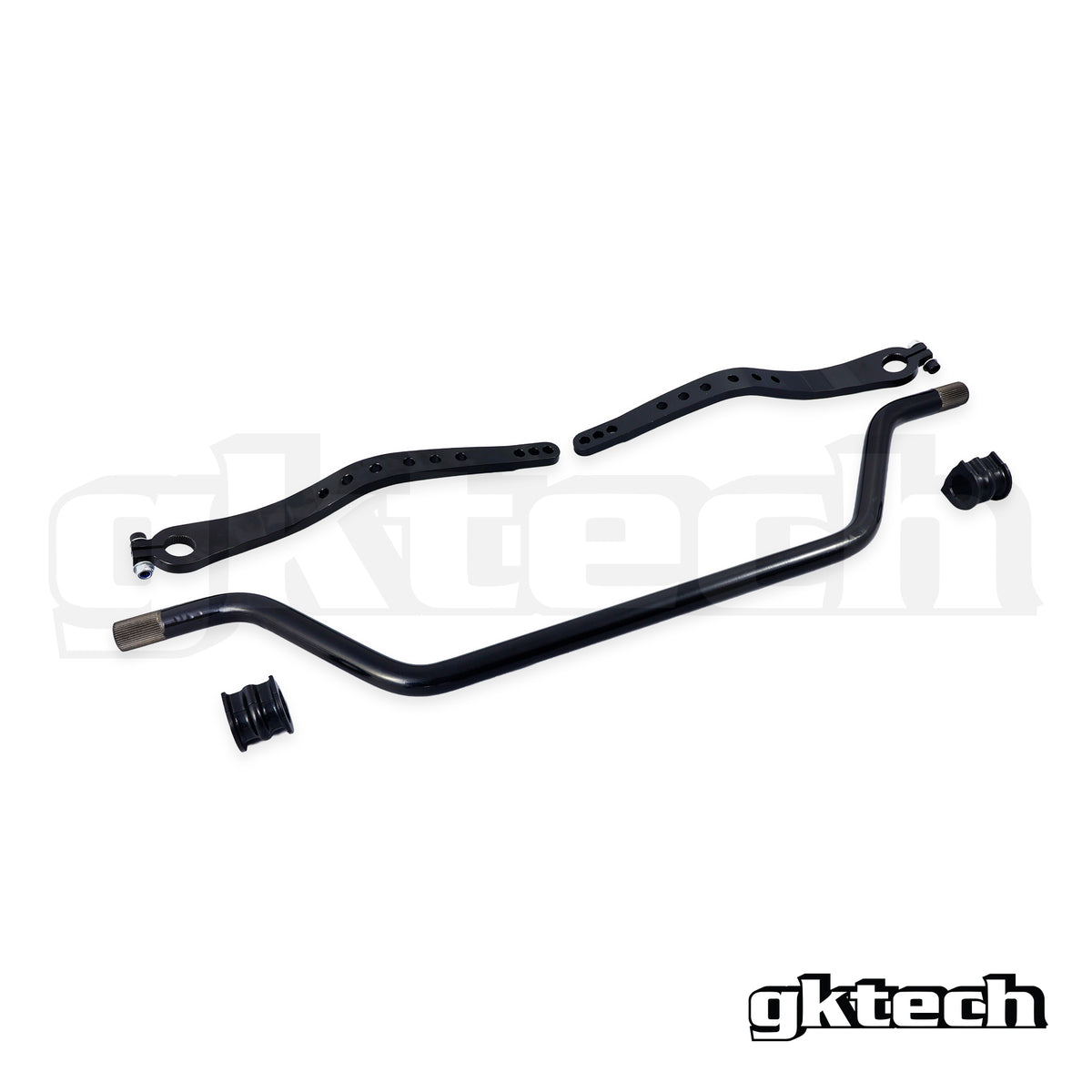

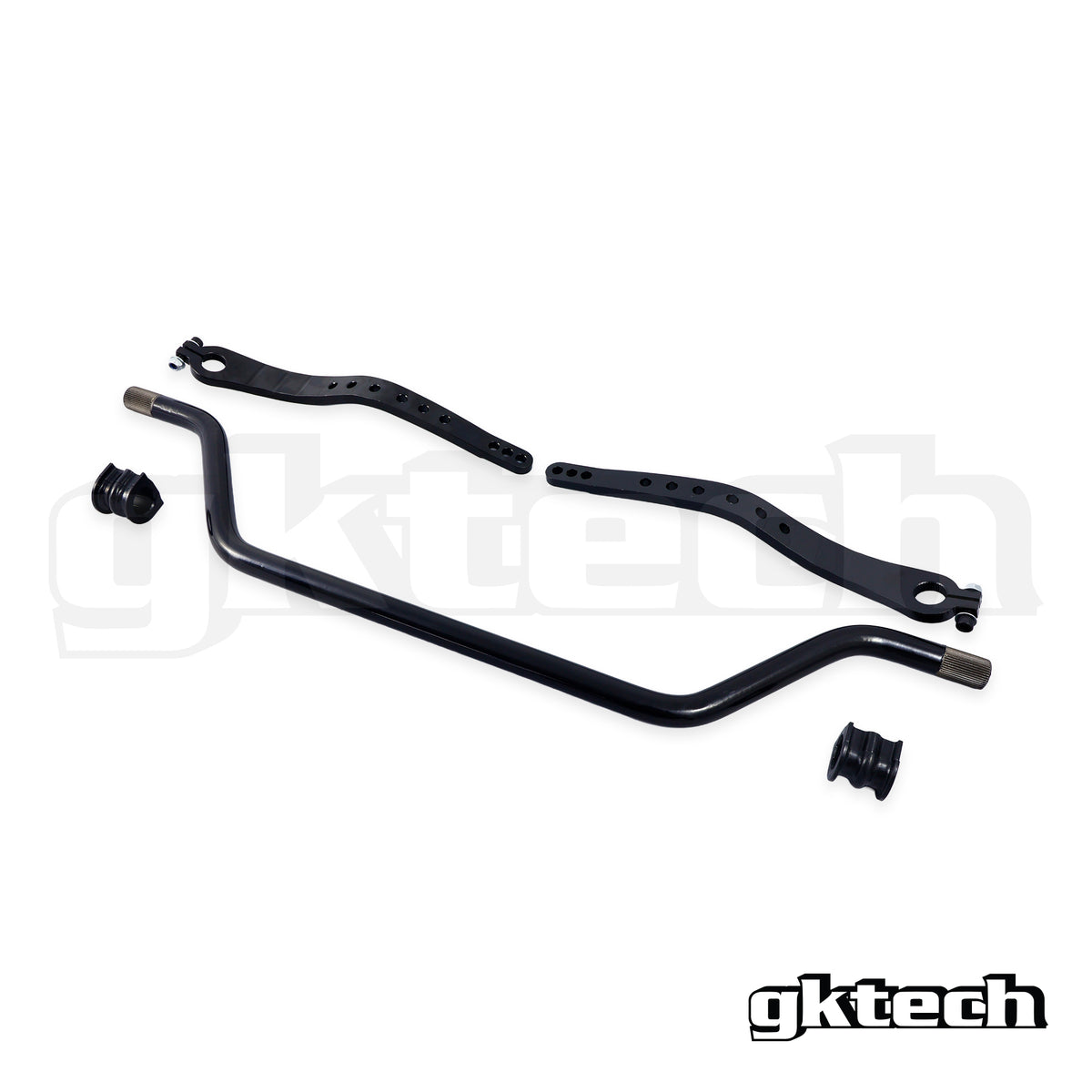

R32 High Clearance Adjustable Swaybar
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The sway bar fits both the R32 and R33/R34, however only R32 levers are currently available. R33/R34 levers are currently in development!
One of the biggest issues when looking for additional steering lock is clearance and one of the things that gets in the way is the swaybar.
We have developed an adjustable swaybar which not only has lots of clearance due to it's unique 3 piece design in the wheel well but as the main rod in the engine bay can be rotated up or down it has amazing clearance for the long RB engine, or even if you have done an engine swap in your R-chassis, ie 2JZ, LS AND VQ35/37 motors etc all clear with ease.
Our swaybar is also suited not only for drifting but also circuit/grip racing!
- Will support 65+ degrees of steering lock (your tyre will hit the chassis rail before the swaybar lever)
- CAD designed and FEA tested
- Manufactured from spring steel (50CrV4) with a 25.5mm OD.
- Stiffness of 1087 Lbf/in / 192 N/mm, with motion ratio of 0.53 and a roll stiffness of 576 Lbf/in / 101.8 N/mm.
- Adjustable in stiffness with 3 holes that increase/decrease the length of the lever arm, which causes the force applied on the torsion bar to be increased/decreased.
- Includes new polyurethane D bushes. Does NOT include swaybar end links however the OEM style can be used and we do sell a replacement set.
The swaybar does fit both the R32 and R33/R34, however only the R32 levers are available. We do have R33/R34 levers in development. For the time being though the OEM swaybar U brackets for the R33/R34 can be seen HERE, OEM part number #54614-65F00
The R-Chassis swaybar was designed alongside the S-Chassis swaybar, if you want more technical information, product benefits and a look into the design process on our swaybars in general, check our our BLOG POST
NOTE: Will not fit on S-Chassis, S-Chassis specific swaybar HERE
Choose options
FAQs
How much angle can these swaybars clear?The R-chassis is generally limited (due to the double wishbone suspension) to around 60-65degrees. However, our swaybar levers sit underneath the chassis rail and do not protrude past where your wheel would normally hit. Ie. you'll hit your chassis rail before you'll hit the swaybar lever.
How hard are these to fit?
They are quite easy to install but mechanical knowledge is required. Remove your standard swaybar, grease the bushings and bolt the new bar in its place.
What happens if a PU bushes needs to be replaced?
Polyurethane itself should last a very long time, in saying that we do have the R32 Polyurethane Bushes available on their own.
Do I need to do any other modifications to get the most from this swaybar?
For the R32, if you are running OEM FLCAs you could replace your worn end links with our Front Swaybar End Links
If you are running our Super Lock FLCAs then you can get the OEM style Front Swaybar End Links or our Premium Spherical End Links
What is the outside diameter of the swaybar?
1.00" (25.5mm)
