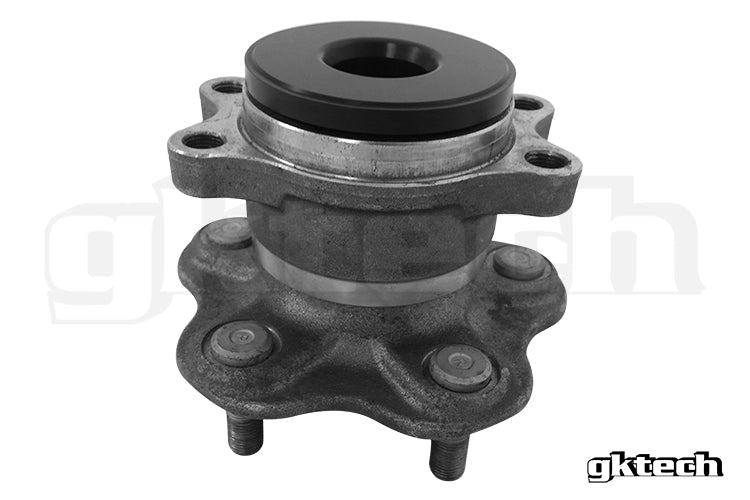

The GKTECH axle spacers are CNC machined from billet aluminum and are concentric in design to ensure the perfect fit. Our V2 version goes between the driveshafts and the hubs and eliminates the need for longer bolts which under high loads can strip out. We now have the option of a spacer as thin as 0.19" (5mm) which is perfect for lowered cars however when running extended LCA's, S14/S15 subframe in an S13 or running bolt on dual caliper brake kits the 0.39" - 0.59" (10mm-15mm) are more suitable. Without axle spacers the hub is moved out and as such the CV's become more and more prone to damage. These axle spacers resolve this issue.

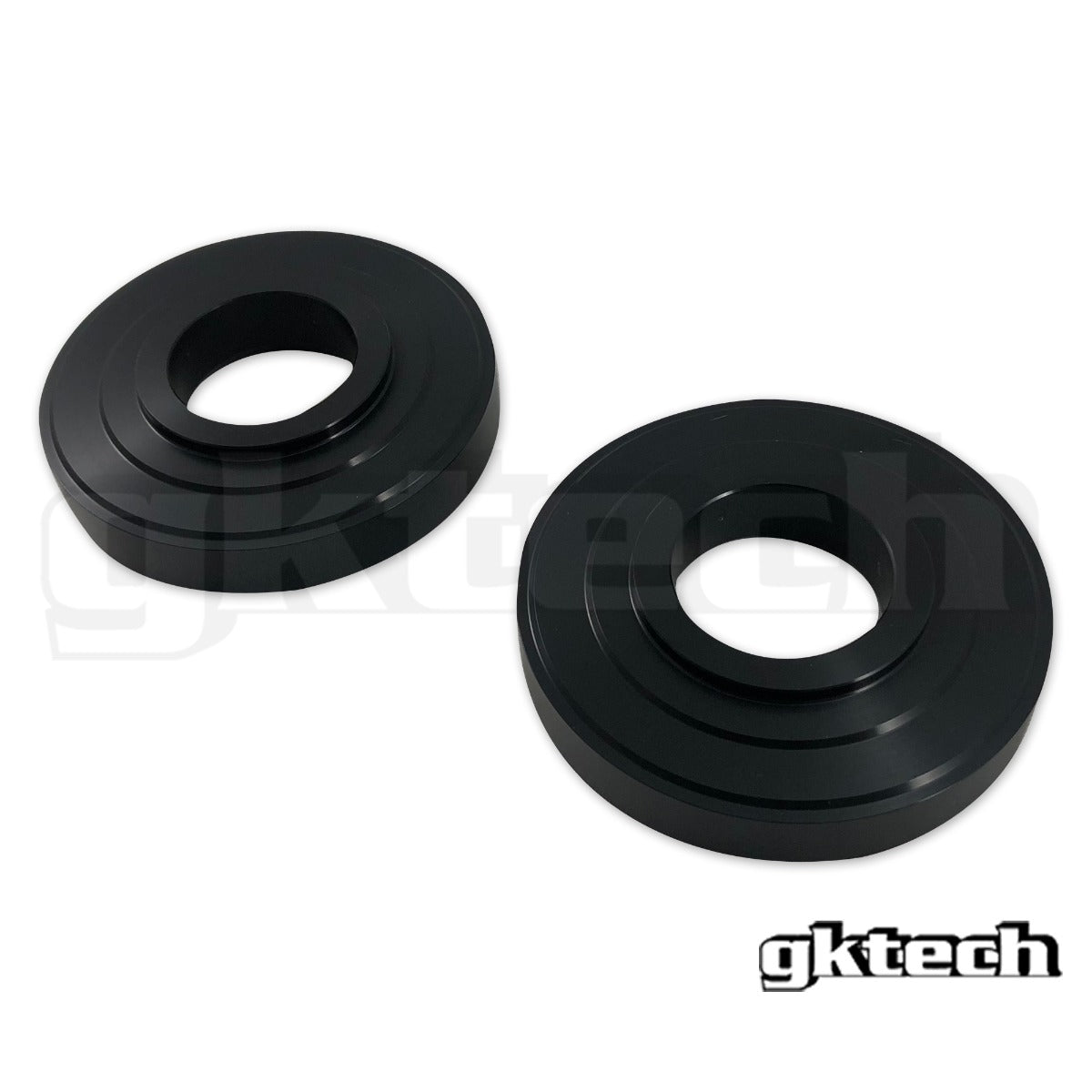

This listing is for a pair of 15mm axle spacers. Please refer to our other listings for alternate sizes.
Vehicle Compatibility:
- Nissan S13 240sx
- Nissan S13 Silvia
- Nissan S14 240SX
- Nissan S15 Silvia
- Nissan Skyline R32 GTS-T
- Nissan Skyline R33 GTS-T
- Nissan Skyline R34 GTT
- Nissan C33
- Nissan C34
- Nissan C35
- Nissan A31 Cefiro
- Nissan Z32 300zx
- Nissan Z33 350z
- Infiniti G35
Sold as a pair only.
NOTE: We can only confirm fitment on OEM wheel bearings.
NOTE#2: Running 0.39" (10mm) or larger spacers will require you to modify the OEM axle nut in order to use the split pin. Alternatively you can run a suitable thread locking compound.
NOTE#3: The further that you space the hub out from the drive shaft the less spline engagement that you have. For most cars this will not be an issue but if you're running high levels of torque and/or you have had issues with stripping splines in the past then please keep this in mind.
FAQs
Will these fit my car?
If you are unsure please measure the spline on your axles but unless your car is a GTR or a Z32 TT, or you know it's been upgraded then it will most likely have non GTR/Z32 TT axles (it's an expensive upgrade so isn't all that common).
Do you make these in other diameters or widths?
We're not making these in any other sizes at this point in time.
Do I need these?
If you are moving your hub out for any of the following reasons: running a dual caliper bracket, you're running extended LCA's or you're running an S14/S15 subframe in your S13. Ideally the amount that you're spacing out your hub, you want to space out your drive shafts.
How do these compare to the bolt on kind that you used to make?
The bolt on kind under high loads was prone to destroying the supplied grade 12.9 hardware. The slip in spacers don't have this issue however they do reduce the spline contact between the axle and the hub. Ie. the spline is 2.36" (60mm) in length so if you add a 0.19" (5mm) spacer then you're reducing the spline contact by 8% or going to the 0.59" (15mm) spacer reduces the contact by 25%. This shouldn't be an issue for most cars but there is the increase in chance of stripping splines (albeit we haven't seen it happen).
VEHICLE COMPATIBILITY
Nissan
C33 LAURELC34 LAUREL
C35 LAUREL
CEFIRO A31
R32 SKYLINE GTS-T
R33 SKYLINE GTS-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Z33 350Z
